PlayStation 2 Slimline CMOS Battery Replacement

Written By: tlroesner
  • Comments: 4
PlayStation 2 Slimline CMOS Battery Replacement

Difficulty

Easy

Steps

3

Time Required

10 - 15 minutes

Introduction

The Sony PlayStation 2 Slim relies on a CMOS battery, essentially a modified battery designed to power the CMOS chip in the hardware. This chip is responsible for storing boot settings, system time, and date. A faulty CMOS battery can cause faults in game saves, incorrect system time, or prevent the system from powering up.

  1. fWOSiHTMSWZlodPH
    fWOSiHTMSWZlodPH
    ocQJQENUDEIkE3Qg

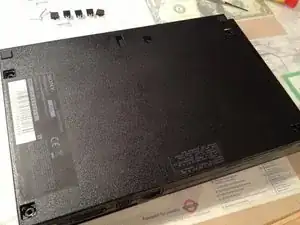

    • Remove all five screws on the downside of the PS2 Slimline

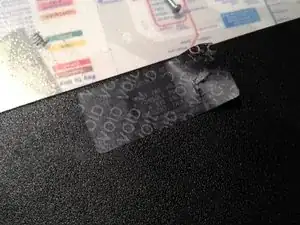

    • Underneath the "Do not remove" sticker, there will be one last screw

  2. BGNYSCUcfckqaRXo
    BGNYSCUcfckqaRXo
    vC63QCGDjW3YOlUA

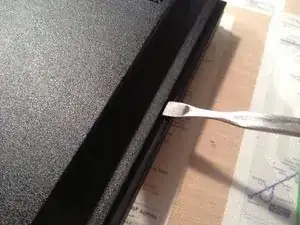

    • Using a metal spudger, carefully pry open the chassis

    • Although a metal spudger is used in the tutorial, it is recommended to use plastic spudgers with most electronics as metal on metal can short circuts

  3. LwWM5FZg3XZ3XUVi
    LwWM5FZg3XZ3XUVi
    WUgL4l1l6iMJALlr
    I1TELeNVw24Rg1JC

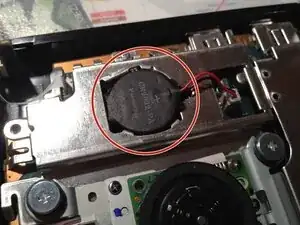

    • Locate the battery on the motherboard. The battery will be a CR2032 Button Cell Battery

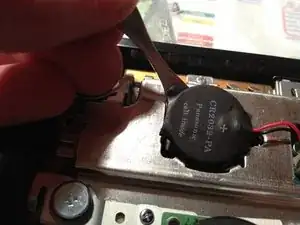

    • Carefully use a metal spudger to pull the battery out of the metal housing

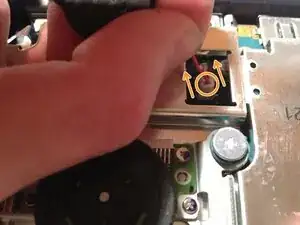

    • Once the battery is fully removed, remove the connector upwards from the motherboard

    • The connector does not have any clips and can be easily removed and pushed back in with reassembly/disassembly

    Hey, thank you. Do you know the name of the connector? There are many connectors for cmos batteries out there. Thank you in advance.

    protux -

Conclusion

To reassemble your device, follow these instructions in reverse order.
