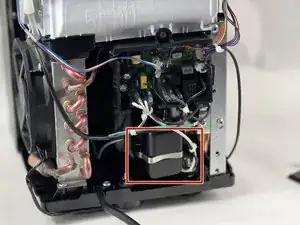

Compressor Relay
Gereedschap
Dit is een aantal algemene gereedschappen dat gebruikt wordt om aan dit apparaat te werken. Je hebt niet elk stuk gereedschap voor elke procedure nodig.
Background
Device Name: Euhomy Ice Maker
Model Number: IM-06D
Release Date: January 9th, 2023
This device is an ice maker with a handle designed for portable use. This device is available internationally. It goes for around $90.00 USD on the market today. This device has a known issue when the water reservoir gets low the pump will start to create a high-pitched whine or buzz. Also, ice particles can get stuck causing a grinding sound. This device creates ice in six minutes and is known for being quiet when working properly. This device is one of the latest models from Euhomy and serves a unique purpose of quick production of ice so there is no real predecessor.
Identification

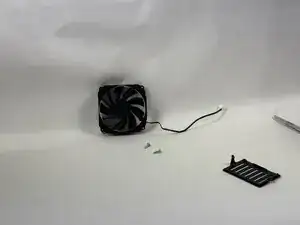

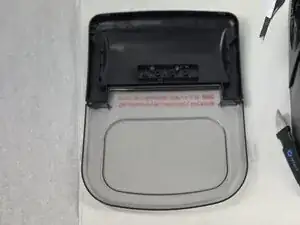

Make sure the Euhomy logo is on the front center of the device. There should be a handle attached on top. There is a clear cover for the ice tray. There is a fan on right side of machine. Finally, there is a bar code on bottom of device should read, Euhomy IM-06D confirming that this is your device.
Technical Specifications
- Model IM-06D
- Protection Type I
- Power115V/60Hz
- Ice-Making Current1.5A
- Ice-Harvest Current1.8A
- RefrigerantR600a, 0.74oz/21g
* Design Pressure, High Side290psig
- Low Side88psigVesicantC5H10
- Net Weight6.2kg
- Dimensions222x294x290mm
- Enclosure Plastic
