Altec Lansing BoomJacket Case Removal

Geschreven door: Ryan Byrnes
  • Reacties: 1
Altec Lansing BoomJacket Case Removal

Moeilijkheid

Easy

Stappen

7

Tijd vereist

5 - 10 minuten

Inleiding

Are you trying to repair a part inside your speaker but need to first remove the case that surrounds the speakers? This guide will help you do just that!

  1. AE4v4E6vrxSnHuZV

    • Using your hands, remove the pegs (4+4) from the front and back of the speaker.

  2. AAJoEVitKGi3TvBr

    • Remove the outer black rubber housing of the speaker.

  3. gHyes4gihZM2XXU1

    • Remove the inner blue rubber housing from the speaker.

  4. hmF6bjeF1kD3LDjg

    • Pull out the two black wire meshes using a metal spudger.

    • Be careful not to damage the metal casing.

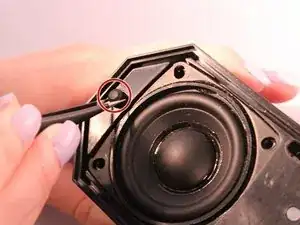

  5. 6QBbuE5Blq1Dt3nH
    6QBbuE5Blq1Dt3nH
    5awbHeyhVgNvEvuN

    • Using tweezers remove the rubber stoppers (4 at the back + 2 at the front).

  6. kV3tH5hjZHg56jDP

    • Using the size PH1 screwdriver remove the screws exposed from the rubber stoppers (4 + 2).

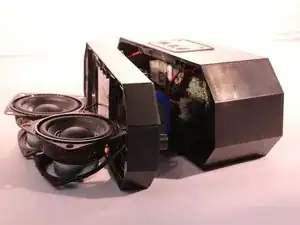

  7. JUEhriNTix1xlyBe

    • Pull the case apart and you will be able to see all the components inside the speaker.

Conclusie

To reassemble your device, follow these instructions in reverse order.
