Altec Lansing BoomJacket Speaker Replacement

Geschreven door: Ryan Byrnes
  • Reacties: 2
Altec Lansing BoomJacket Speaker Replacement

Moeilijkheid

Moderate

Stappen

8

Tijd vereist

10 - 20 minuten

Inleiding

Are your speakers not producing the same amount of BOOM that they used to? Perhaps repairing your speakers is the way to go.

  1. Dww1lNNcSnKEfaOA

    • Using your hands, remove the pegs (4+4) from the front and back of the speaker.

  2. EZcPhuWsTvSIukDF

    • Remove the outer black rubber housing of the speaker.

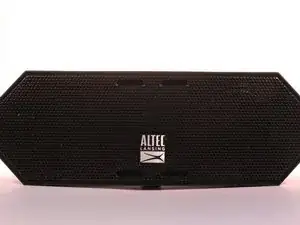

  3. BCe2JsHYDSeAVofm

    • Remove the inner blue rubber housing from the speaker.

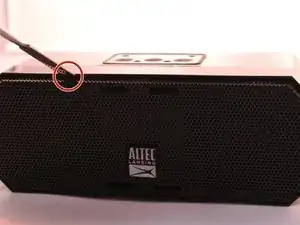

  4. TaMsC2UOaok51QSD

    • Pull out the two black wire meshes using a metal spudger.

    • Be careful not to damage the metal casing.

  5. RFexdyWNTAlBNH2Z
    RFexdyWNTAlBNH2Z
    mGMNuJAc5kH1dDAI

    • Using tweezers remove the rubber stoppers (4 at the back + 2 at the front).

  6. SSqXdmE4QXZNPN2C

    • Using the size PH1 screwdriver remove the screws (4 around each speaker).

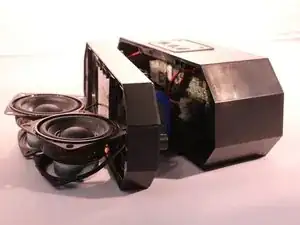

  7. Zr1WZWFvIZTxpSGG

    • Pull the case apart and you will be able to see all the components inside the speaker.

  8. QxXmuUkDnmRtftDw

    • Remove the speakers (not entirely because of the wiring) by gently pulling each speaker up.

Conclusie

To reassemble your device, follow these instructions in reverse order.
