Apple Watch Series 3 Vervanging van het scherm

Geschreven door: Tobias Isakeit

Reacties: 81

Apple Watch Series 3 Vervanging van het scherm

Moeilijkheid

Moeilijk

Stappen

Tijd vereist

2 - 3 uren

Inleiding

Gebruik deze handleiding om een kapot, gebarsten of niet-werkend scherm op de "Apple Watch Series 3" te vervangen.

Zorg dat je je Apple Watch hebt ge-update naar watchOS 5 of nieuwer (en de bijbehorende iPhone naar iOS 12 of nieuwer) om te voorkomen dat je problemen krijgt na het vervangen van je scherm.

Het vervangen van het scherm kan problemen veroorzaken met Apple Pay. Om het risico op deze problemen te voorkomen, kun je al je ApplePay accountinformatie verwijderen voordat je je scherm vervangt om deze na de reparatie opnieuw in te voeren.

Deze handleiding toont de procedure voor de standaard, GPS-versie van deze horloge, maar de procedure voor de cellulaire/LTE-versie is hetzelfde. Belangrijke verschillende in procedure zullen expliciet in de tekst worden genoemd.

Gereedschap

Onderdelen

Stap 1

Voordat je met een reparatie begint, haal je je horloge uit de oplader en zet 'm uit.
Als je touchscreen gebroken is en je je horloge dus niet meer uit kunt zetten, kun je deze alternatieve methode gebruiken om 'm alsnog uit te krijgen.

Verify your model. The back of the Cellular model just says GPS, so be sure to check the groves where the watch band goes to determine you model. I made the mistake of just reading the back of the device and since I’d been gifted the device didn’t know it was cellular. Cellular has a different type of touch force gasket, different screen, and different battery connections.

Ryan Holt - 07/10/19

From what I just read on Apple, the only differences in watch series 3 is 38mm and 42mm.

mcr4u2 - 27/01/21

As a consumer all you need to know are 38mm and 42mm

Michael Adoga - 05/05/21

The back will say GPS LTE if it’s the cellular version. If it doesn’t say LTE it is only the GPS version. The displays are different whether or not it is LTE(cellular).

themepark -

This alternative method only reboots the watch.

Gregg Stanley -

Stap 2

Bereid een iOpener voor (of pak een föhn or warmtepistool) en verwarm daarmee het gezicht van de horloge totdat het net te warm is om aan te raken.
Laat de iOpener minstens een minuut op de horloge liggen om het scherm volledig op te warmen en daarmee de lijm te verzachten die het scherm aan de behuizing bevestigt.
Het kan zijn dat je de iOpener opnieuw moet verwarmen, of dat je het op verschillende plekken op het scherm moet toepassen omdat bepaalde delen afkoelen, om het warm genoeg te krijgen om los te maken.

I have heated up the iOpener to 165 degrees and left it on for more than a minute. No way I can lift the screen off with the exact knife. Tried different angles in various places, but no go. I also used a hair dryer un til the watch screen was too hot to touch and even tried a very hard cutting tool blade and also no go. Could n ever get the blade under the face I applied enough force where I could see that the blade left small marks, not very big, but could never get anything to move or lift. What am I doing wrong? I spent 47 years at a global computer company and I am used to taking apart small things and applying force when required. I don’t know what I am doing wrong. Please help me.

Rafael Blanco - 28/10/20

Getting the initial gap is not easy. Maybe a playing card could work its way in the tiny gap and cut some adhesive. After that there might be some success with an exacto knife. Or you want to try a piece of aluminum foil (folded for more rigidity) for cutting the adhesive. Be aware of the force touch gasket and that it might get damaged during that procedure.

Tobias Isakeit - 03/11/20

I finally used a hot air gun set to 150 deg. C heating up the edges by slowly spinning the watch around before the technique worked. Difficult is the level noted and it’s correct. Finally worked and watch perfectly functioning.

Chris Giavotto -

I used a heat gun, too. I was worried after reading comments that it would burn up the LCD, so I heated it a little bit at a time, rotating it like you did, and checking to see if I could get my knife under it. I must have hit one of the buttons because it did turn on, but that did reassure me that the display was okay.

It's open. Now that the watch and I have had a few minutes to cool down, I'm ready for the next step. Not as difficult as I thought it could be. Tomorrow, I'll be replacing the battery in an iPod Touch 6th Gen.

bester -

I had to heat the iOpener 2 times and leave it on top of the watch for 10 minutes.

Axel Trujillo -

Stap 3

Omdat de ruimte tussen het scherm en de body van de horloge zo klein is, heb je een scherp mesje nodig om ze van elkaar te scheiden. Lees de volgende waarschuwingen goed door voordat je doorgaat.
Bescherm je vingers door ze weg te houden van het mes. Als je er niet zeker op bent, bescherm je hand dan met een zware handschoen, zoals een leren of tuiniershandschoen.
Zorg ervoor dat je niet te veel druk uitoefent, aangezien dit ertoe kan leiden dat je met het mes uitschiet en daarmee jezelf of de horloge beschadigt.
Draag oogbescherming. Stukken van het mes of het glas kunnen breken en gaan rondvliegen.
Voel je vrij om de horlogeband vast te maken of juist te verwijderen om zo meer controle te krijgen tijdens het repareren.

Don’t cut your finger off!

Mike -

The Watch 3 stainless Steel has an additional Frame. Where do i have To Open it?

asteffen@me.com -

I wore thick gardening gloves just to be safe 😅 and it took a while but the screen did come off.

Axel Trujillo -

Stap 4

Plaats een kant van een aflopend mes in de enge ruimte tussen het scherm en de buitenste behuizing. Begin aan de korte kant van het scherm, het dichtst bij de digital crown.
Druk je mes stevig en recht omlaag in de enge ruimte.
Als je mes er eenmaal in zit, kun je het mes lichtjes kantelen om zo het scherm rustig omhoog te krijgen.
Steek je mes niet verder dan 1/16de van een inch, of ongeveer 2 mm in het toestel.

It’s difficult to grip case in a way that keeps fingers safe from the blade but doesn’t hit the side buttons and turn the device on!

If it’s a struggle to get the display to release, warm case for a few more minutes.

Kyle Powderly -

I have tried so may times to get the display to release but nothing works. Should have bought a new watch LOL. Kept the iOpener on 2 times for 10 minutes and it still won't open. There must be a better way.

Susan E. White -

Hi Susan,

if you're struggling to get the adhesive loose enough a hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the device. The edge should feel slightly too hot to the touch.

Dominik Schnabelrauch -

It's no way to place the edge of a curved blade into the thin gap between the display and the outer case!! The blade is far too think to place into the thin gap for mine😭 already heated the watch with hair dryer for like 10minutes..

Melody M -

Stap 5

Als je een kleine ruimte met je mes hebt gemaakt, verwijder je het mes en kun je de dunne kant van een openingstool erin steken.
Duw je openingstool in de vrijgekomen ruimte en gebruik daarna je duim als een soort hefboom om vervolgens het scherm verder open te krijgen.
Probeer het scherm nog niet volledig te ontkoppelen of uit de behuizing te krijgen.

Stap 6

Steek een openingsplectrum onder het scherm en scheid op voorzichtige wijze de Force Touch afdichting van het scherm.
iFixit scherm- en batterijreparatiekits bevatten een vervangende Force Touch pakking, zodat je je geen zorgen hoeft te maken over het beschadigen ervan.
Een manier om de Force Touch pakking heel te houden is door voorzichtig onder de hoek van het scherm te wrikken. Als de Force Touch pakking loslaat bij het omhoogtillen van het scherm, of als je de lagen van de pakking van elkaar scheidt, zul je de pakking alsnog moeten vervangen.
Schuif je openingsplectrum rondom het scherm om de lijm tussen de Force Touch afdichting en het scherm los te krijgen.
Nogmaals: steek je openingsplectrum niet dieper dan 1/16e inch oftewel 2 mm in het toestel.

Stap 7

Voorkom dat je de schermkabels beschadigt door het scherm nog steeds niet volledig te openen of los te maken.
Open het scherm totdat je ongeveer een hoek van 45° graden heb en gebruik een pincet om de lijm tussen het scherm en de Force Touch pakking te verwijderen.
Dirigeer de lijm om de horloge heen en langs de schermkabels om deze volledig te verwijderen.

There seems to be something attached to this end that I am supposed to open looks like something metal which isn’t showing on your photos, whatever it is doesn’t want disconnect and I am worried about forcing it in case I break something . Mine are a a series 3

Pat gordon -

Stap 8

Gebruik een Y000 schroevendraaier om de tri-point schroef, die de metalen beschermplaat bevestigt, te verwijderen.
Gebruik een pincet om de beschermplaat te verwijderen.
Open eerst het plaatje volledig om deze uit de scharnieren los te maken.
Beweeg het dan een stukje terug en til de plaat volledig uit haar scharnieren.

Pictures are the GPS version. Cellular doesn’t have the gap and separate removable plate on the “taptic engine” section.

Ryan Holt - 07/10/19

What if I’m unable to unscrew the screw? I’m using the right tool, but it just won’t do it. It feels like it can’t “lock in” if you know what I mean in order to be able to get enough grip to turn the screw. Any suggestions?

Cade Capper - 02/11/20

Once you have the driver set properly in the screw you have to lean into it to get it to turn. The screw is coated with LockTight.

mailghall -

Stap 9

Bij de GPS-versie is het mogelijk om de batterij direct te ontkoppelen. Bij de cellulaire/LTE-versie zul je eerst de Force Touch pakking los moeten maken en moeten verwijderen voordat je de batterij kunt ontkoppelen.
Ontkoppel de batterij door de batterijaansluiting in een rechte beweging omhoog te duwen.
Buig de batterijaansluiting vervolgens lichtjes omhoog zodat je zeker weet dat deze niet per ongeluk contact zal maken.

whats does it happen if the connector make contact by accident????

Daniel Sanchez -

Stap 10

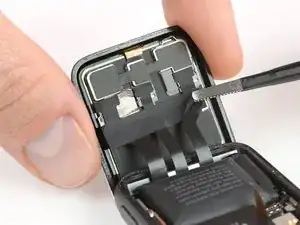

Gebruik een pincet om de tape, die over de schermkabelaansluitingen heen zit, te verwijderen.
Begin rechtsonder en werk rustig naar de aansluiting in het midden toe.
De tape kan wat hardnekkig zijn, dus zorg ervoor dat je niet te hard trekt en daarmee de kabels eronder beschadigt. Indien nodig, kun je een beetje warmte toedienen of kun je wat isopropyl alcohol gebruiken om de lijm te verzachten.

Das Klebeband muss gar nicht vollständig abgelöst werden. Es reicht aus, die Stecker freizulegen. So hat man beim Wiederzusammensetzen das Klebeband wieder in der optimalen Position und auch nicht das Risiko, die leitende Folie zu verletzen.

BMJ -

BMJ's comment translated by translate dot google dot com:
"The adhesive tape does not need to be completely removed. It is enough to expose the connectors. This means that when you put it back together you have the adhesive tape in the optimal position again and there is no risk of damaging the conductive film."

Robert -

Stap 11

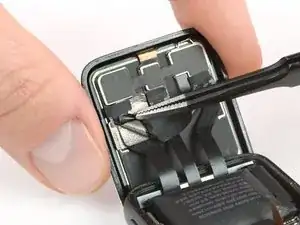

De linker aansluiting bevat een stuk geleidende folie die los kan komen bij het lostrekken van de tape.
Wanneer het mee los komt, pak je het aan de linkeronderkant vast om het volledig te verwijderen. Hierdoor blijft de bijbehorende folie die eronder zit (op het scherm) onaangetast.

How important is the conductive tape?

John Ellis - 02/09/20

Stap 12

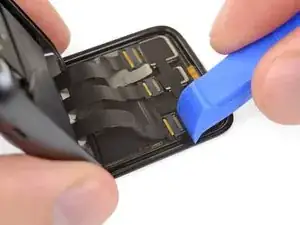

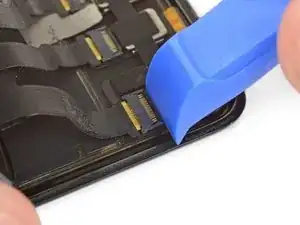

Gebruik een wriktool of een schone vingernagel om de eerste van de drie ZIF-aansluitingen te openen door de kleine, zwarte vergrendelflap tegenover de kabel voorzichtig omhoog te duwen.

Ir is viral to lift the small black flap or you ruin the entire process here, I lost everythign here...the first one stuck and the entire connector discintigrated on me, not my first rodeo, but lost the entire project.

Lisa Russell -

Stap 13

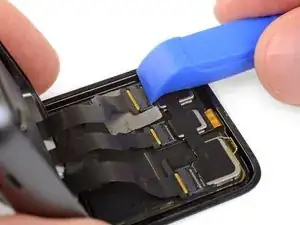

Duw vervolgens de vergendelflapjes van de overgebleven twee ZIF-aansluitingen omhoog.
De meeste vervangende schermen worden verscheept met gesloten vergrendelflapjes. Zorg ervoor dat je, tijdens het weer in elkaar zetten van je horloge, de flapjes open hebt staan voordat je de kabels erin probeert te steken om te voorkomen dat je je horloge beschadigt.

Stap 14

Gebruik een pincet om de flexkabels van het scherm te ontkoppelen door deze rustig uit het contact te trekken.
Als de kabels hardnekkig vastzitten, kun je proberen om ze er voorzichtig "uit te laten lopen" door ze rustig van links naar rechts te bewegen terwijl je lichtjes aan de kabel trekt.

One of the cable broke what should I do.

Sunita & Awdhesh Sharma -

Stap 15

Verwijder het scherm.
Voor gedetailleerde instructies over het weer in elkaar zetten van je horloge, inclusief het vervangen van de Force Touch pakking en de omringende lijm, check je de handleiding die hieronder in de conclusie staat.

how are you

Please answer me quickly

i have a apple watch 3 and broken lcd

can i replace this lcd with a lost apple watch lcd?

Does it work?

I've heard that Apple does not allow this and ban the device!!!!

Hossean Dad - 24/07/19

Conclusie

Ga verder vanaf stap 10 van onzeForce Touch Sensor handleiding om je horloge weer dicht te maken en je reparatie af te ronden. Sluit je scherm, voor de beste resultaten, niet aan tot na stap 16.
