DJI Mini 2 SE Propeller Replacement

Geschreven door: Mazroee, Matin
  • Reacties: 0
DJI Mini 2 SE Propeller Replacement

Moeilijkheid

Easy

Stappen

5

Tijd vereist

1 - 5 minuten

Inleiding

This guide is to help replace DJI Mini 2 SE propellers. Using this guide, you will be able to take apart and replace damaged propellers of the DJI Mini 2 SE. It is important to order the propeller before starting to take apart the drone to stop further damage. Declined drone performance and inability to hover or fly as commanded can all be causes of damaged propeller(s). The propellers of the DJI Mini 2 SE are secured using Phillips M1.6 screws. Here is a video to further help with this guide.

  1. UXASgkoVXGPVy3II

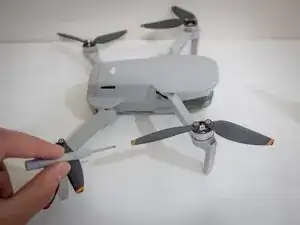

    • Identify the damaged propeller.

  2. ILU3dMZfYVA1ofDx

    • Determine whether the propeller to be replaced is a Type A or Type B propeller.

    • The A propellers have a small notch that distinguishes them from the B propellers as depicted in the photo.

    • Order a new set of the corresponding propellers.

    • Order the DJI branded propellers for the best performance.

  3. DoENAhvtoFvATk3c
    DoENAhvtoFvATk3c
    bXJcKTmqJXyq3rUT

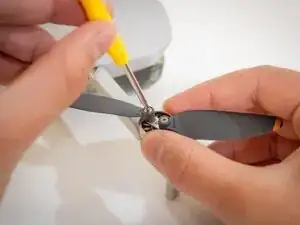

    • Unscrew the screw connecting the corresponding propeller to the motor by using the screwdriver in a counter-clockwise manner.

  4. FceUe14eY3ZBnDIM
    FceUe14eY3ZBnDIM
    UZbZnMYBDRDCiKxM

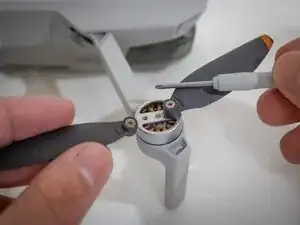

    • Remove the old propeller from the motor.

  5. ChFGwAlqHUAqQo2W
    ChFGwAlqHUAqQo2W
    jNUigONClaiQhwRT

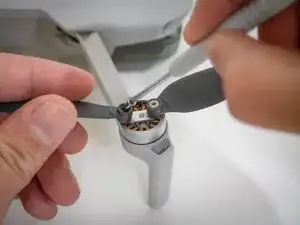

    • Screw in the new propeller by using the screwdriver in a clock-wise manner.

    • It is recommended to use a new screw.

    • Tighten screw fully to ensure safety during flight.
