Demontage van de MacBook Pro 13" Touch Bar 2017

Geschreven door: Blake Klein
Gepubliceerd: 08/06/17
  • Reacties: 41

Demontage van de MacBook Pro 13" Touch Bar 2017

Gepubliceerd: 08/06/17

Uit elkaar gehaald

Inleiding

"Love is in the MacBook Air" en we hebben een gloednieuwe MacBook PRo 13" Touch Bar 2017 om voor te vallen. Wat is er nieuw, geleend, en blauw in deze MacBook Air killer opvolger? We zullen 'm moeten demonteren om hier achter te komen.

Wil je meer van ons horen, dan verbaast ons dat niets. Je kunt ons onder meer volgen op Instagram, Twitter en Facebook.

  1. dDaLjBMfFORrML6L
    dDaLjBMfFORrML6L
    bS5MxGUPH5C4QaDU

    • De geur van een nieuwe Mac, je moet ervan houden, maar hoe nieuw is deze Pro? Laten we eens kijken naar alle specs:

    • 13.3" LED-backlit IPS Retina-scherm met 2560 x 1600 resolutie (227 dpi), P3 wide kleurenpalet

    • 3.1 GHz Kaby Lake dual-core Intel Core i5 (Turbo Boost tot 3.5 GHz)

    • 8 GB aan 2133 MHz LPDDR3 SDRAM

    • 256 GB PCIe-based SSD

    • Geïntegreerde Intel Iris Plus Graphics 650

    • Vier Thunderbolt 3 (USB-C) poorten en 3.5 mm hoofdtelefoonpoort

    • 802.11ac Wi-Fi en Bluetooth 4.2

  2. CDPnXt3AxNejf2GL
    CDPnXt3AxNejf2GL
    xE4Yp4OdTJi6NS2F
    ydEWHyEN2EWYZbaw

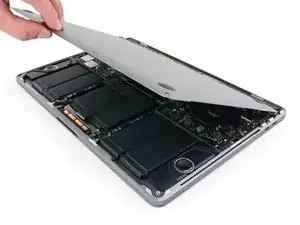

    • Met dank aan onze ervaringen uit het verleden hebben we de aanstotelijke zuignap-wrikker-schuif manoeuvre al onder de knie en weten we deze laptop dus in een mum van tijd te openen.

    • Nu de oester is geopend en de parel eindelijk zichtbaar is, worden we overvallen door een déjà-vu.

    • Vergelijk de MacBook Pro 13" Touch Bar 2017 (de tweede foto)...

    • ...met de MacBook Pro 13" Touch Bar 2016 (derde foto).

    • Eigenlijk lijkt het erop dat vrijwel alles hetzelfde is, tot aan de 49.2 Wh batterij toe.

    • Het enige verschil dat ons wel opvalt is de afwerking van de ventilatoren. Het lijkt erop dat de 4K iMac een goede nieuwe verfbeurt heeft gekregen.

    Poor man's suction cup: wide packing tape works great to make a temporary handle to pull up on the case.

    colleenthompson -

  3. weOoHyyHD2c2TTb6
    weOoHyyHD2c2TTb6
    NarKemP5uHIdcOIE

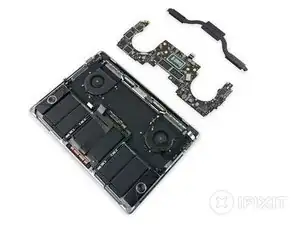

    • We houden er altijd van om onderdelen uit een toestel te halen om deze te transformeren in goede snorren. Dit zijn de geheimen aan de binnenkant:

    • Intel Core i5-7267U processor met Intel Iris Plus Graphics 650

    • Intel® JHL6540 Thunderbolt™ 3 controller

    • SanDisk SDRQKBDC4 064G 64 GB NAND flashgeheugen (x2 voor een totaal van 128 GB aan deze kant van het bord)

    • Samsung K4E6E304EB-EGCG LPDDR3 DRAM (4 x 2 GB voor een totaal van 8 GB)

    • Texas Instruments SN650839 72C27RNGI en TI/Stellaris LM4FS1EH SMC Controller (vervangende codenaam voor TM4EA231)

    • H9CKNNN4GTATMR-NTH

    • Murata/Apple 339S00056 Wi-Fi-module

    how did you remove the heatsink?

    Christian Echavez -

  4. O35tnkRCOfDKhJuY

    • Aan de andere kant vinden we het volgende:

    • 2x SanDisk SDRQKBDC4 64 GB NAND flashgeheugen (zoals we ook vinden in de 2016 Escape Edition's verwijderbare SSD)—wat het totaal op 256 GB brengt.

    • APL1023 343S00736 (waarschijnlijk is dit de custom Apple T1 chip die gecombineerd is met de Touch Bar) en (Apple?) 338S00193-A1 17148HDK

    • 2x Texas Instruments TI CD3215C00 68C7QKW G1

    • Intersil 95828 HRTZ X708FGK

    • Texas Instruments HD3SS215 6.0 Gbps HDMI DisplayPort 2:1/1:2 Differential switch

    • Macronix MX25L6473EZNI-10G Serial Flashgeheugen

    • NXP 66V10 NFC controller, welke een Secure Element 008 en NXP PN549 (die we ook in de iPhone 6s vonden) bevat

  5. OWOKSvDEEQqWReDE

    I just got one of these with apparent liquid damage to the SSD modules area—the computer is dead as a doornail, no signs of life. I see ifixit sells mustaches—er, motherboards—for this model (used), but there is no replacement guide. I'm wondering if it would be worth trying to replace that. This is still a perfectly viable model MacBook Pro otherwise, despite being officially vintage.

    colleenthompson -

  6. oeGOMVnqniSNknOW

    • De MacBook Pro 13" met Touch Bar krijgt van ons 1 van de 10 punten op onze repareerbaarheidsschaal (10 is het gemakkelijkst te repareren):

    • Het trackpad kan worden verwijderd zonder dat de batterij eerst moet worden verwijderd.

    • Propriëtaire pentalobe-schroeven blijven het repareren van de laptop onnodig bemoeilijken.

    • De batterijmodule is in z'n geheel, en niet onverdienstelijk, in de behuizing vastgelijmd, wat vervanging bemoeilijkt.

    • De processor, RAM en het flashgeheugen zijn vastgesoldeerd aan het logic board.

    • De Touch Bar voegt een tweede, moeilijk te vervangen en makkelijke te beschadigen scherm toe.

    • De Touch ID-sensor werkt ook als een aan-/uitknop en is gecombineerd met de T1 chip op het logic board. Het repareren van een kapotte aan-/uitknop kan speciale hulp van Apple, of een nieuw logic board vereisen.
