Disassembling Logitech Z506 Rear Satellite speaker

Geschreven door: sebineagu80
  • Reacties: 0
Disassembling Logitech Z506 Rear Satellite speaker

Moeilijkheid

Moderate

Stappen

5

Tijd vereist

Geen schatting

Inleiding

Logitech Z506 rear speaker disassembly

  1. BOXsyhNYThGjwiem
    BOXsyhNYThGjwiem
    nBbqCYrYYbouGfrt
    DSD11xJiTHu4cMaZ

    • This is the speaker.

  2. FCbZCQlZTa5HnDhA
    FCbZCQlZTa5HnDhA
    EmPBcFLefxvQECoO
    MFVOKMpm3jNbvULd

    • 1:Use a H4 hexagonal screwdriver

    • 2:Remove the foam hiding the bottom screws

  3. BFeU4BVs2hp6GSDX

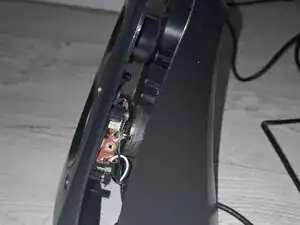

    • Open the speaker.

  4. mcbG1Wh61QaJaZNW
    mcbG1Wh61QaJaZNW
    rUicEPWvKaHuoCUV

    • 1:Remove the Philips screws from the speaker

    • 2: The speaker is 4Ω,8W

  5. IHyIYhCQAMraWmGF
    IHyIYhCQAMraWmGF
    yXuQtI54eKtLCRZx

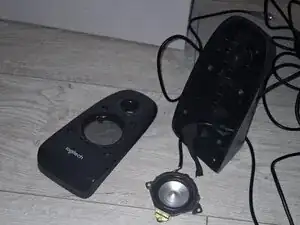

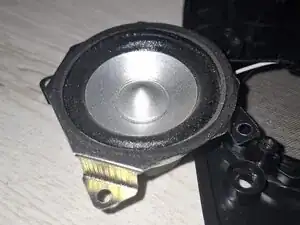

    • 1:Remove the speaker from the housing

    • 2:The speaker is now disassembled

Conclusie

To reassemble your device, follow these instructions in reverse order.
