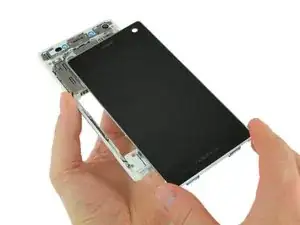

Fairphone 2 Vervanging van de schermmodule

Geschreven door: Tobias Isakeit
  • Reacties: 35
Fairphone 2 Vervanging van de schermmodule

Moeilijkheid

Eenvoudig

Stappen

7

Tijd vereist

5 minuten

Inleiding

Vervang de schermmodule van je Fairphone 2.

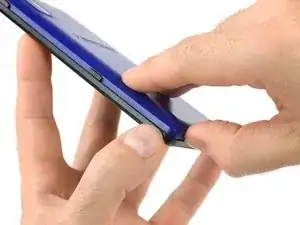

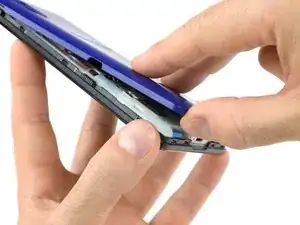

  1. xN4HMuCJbyHypnYu
    xN4HMuCJbyHypnYu
    6h1mgaeZyNiMsKme
    fOe5CglZGapncCTa

    • Kies een hoek van de behuizing en duw de nagel van je duim tussen de twee delen.

    • Trek het achterste deel van de behuizing omhoog om de kleine snap fit-verbindingen van elkaar te scheiden.

    • Verwijder het achterste deel van de behuizing.

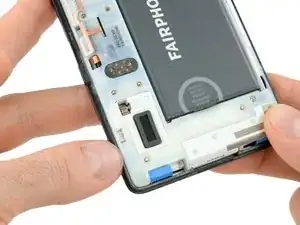

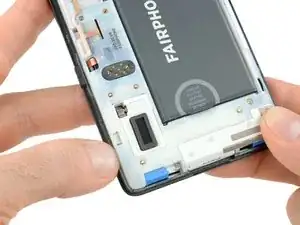

  2. qtQjD6AgpxdShSua
    qtQjD6AgpxdShSua
    aZCfOZUCLJhBbjTP
    bkSGaVpn6fibkEPH

    • Duw de nagel van je duim nu tussen het voorste deel van de behuizing en de body van de telefoon.

    • Scheid de snap fit-verbindingen van het voorste deel door deze naar de zijkant te trekken en tegelijkertijd tegen het scherm aan te duwen.

  3. mR6wv1AWVbO1cC1P

    • Verwijder het voorste deel van de behuizing.

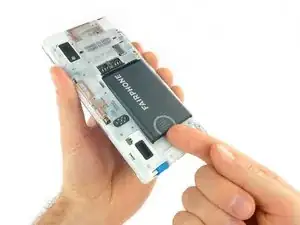

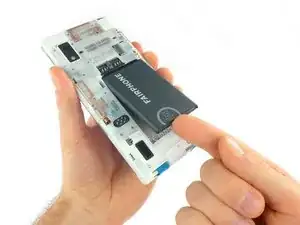

  4. cBZ4Hst1JakkrgGD
    cBZ4Hst1JakkrgGD
    R5lfWeM5af25uJ3c
    UbUyAXGMuyNkpYno

    • Duw de batterij richting de bovenkant van de telefoon.

    • Trek de batterij weg uit de telefoon.

    It isn't necessary to remove the rim if all you are doing is changing the battery. That becomes necessary if you are to proceed farther into the phone.

    It might be good to begin by saying switch the phone off. The Fairphone is for everybody and most will have no experience of disassembling electronic devices.

    Jim Kinnibrugh -

  5. KLjDCiFX1OZESNLZ
    KLjDCiFX1OZESNLZ
    d1ALWWMiJ5DGayBR
    UlCUHyuuEItT51nU

    • Als je de batterij uit je telefoon hebt verwijderd, kun je de schermmodule ontgrendelen.

    • Schuif de twee blauwe vergrendelingen naar de binnenkant.

    • Schuif de schermmodule in de richting van de onderkant van de telefoon.

    Being technically nervous I couldn't do this. I didn't know how much pressure, pull or push was required.

    Roger Halford -

    After I'd watched the video my confidence increased!

    Roger Halford -

    It was a bit stiff and not so easy.

    M ichael Cross -

    I have not this easy access to the two blue switches. How Can I do that?

    Anne -

    Super, nachdem ich’s im Video gesehen habe, war es supereasy, vielen Dank!

    Imke -

    You don´t mention taking the rim off the display first. That stymied me completely. Do add that to your otherwise clear and helpful instructions. Best wishes - Walt Patterson

    Walt Patterson -

    This guide is based on the old bumper made in one piece. We should update to the sandwich bumper with a top and bottom part.

    Tobias Isakeit -

    I agree. Took a while to figure that one out!

    Jenny White -

    Sorry, I can not slide away the display assembly to change the main camera module. The 2 blue switches seem to be locked. Cristiano, Italy

    Cristiano Gillardi -

    I replay to myself: I did it at last! ! But it was very, very, very, very hard!

    Cristiano Gillardi -

    Can’t get any movement at all on screen been trying for over an hour and others too ! there is no way to grip it as its so slippery have tried putting as much presure as possible on display by pushing far end of it with thin plastic implement and endless wiggling and pressing of every possible part of lower case no joy ! feels like its attached at mid sides. Elinor Rivers

    Elinor Rivers -

    try sliding along the display while applying some pressure two or three times. it worked really easily for me

    Elisa Werner -

    I could slide the display case off very easily after watching the video, but when it came to doing the sequence in reverse I was fiddling about for ages trying to ‘slide’ it back on, until I realised this just wasn’t going to work and needed to click it back into place. Posting here in case this is helpful for others.

    Rachel Neat -

  6. Hier zie je nog een manier om de schermmodule open te schuiven.

    • Hier zie je nog een manier om de schermmodule open te schuiven.

    Impossible de déplacer l'écran vers le bas chez moi. Je n'ose pas forcer... c'est normal?

    benbahmedf -

    I can not slide the display assembly. Some help?

    Laura Ivorra -

    The display sits very tight.

    So you need to gently apply a little force to slide it open the first time.

    It is hard to get a good grip on the two parts for a successful "magic move".

    Tobias Isakeit -

    Leider kann ich weder mit "little force" noch mit "much force" das Display nach der Entriegelung bewegen. Wer kann mit mehr Details helfen?

    Christine Heckmann -

    It did work for me. Make sure, you have unlocked the blue switches in step 3 (sorry, had to mention that). if you can't get a grip, you might try to lay a ruler or two credit cards on top of each other on a table that is tight at the wall,

    - place the ruler/credit cards on the table and just attaching the wall

    - place the PF2 with the display upside down on the table in front of the ruler/credit cards with the blue switches towards you and the headphone plug attaching the ruler/cards.

    - then gently but with increasing force push your two thumbs towards the top of the main FP2 unit (or use more fingers to push both in the centre as well as on the two edges). make sure you push horizontally and that the ruler is not higher than the border of the display unit (1.5-2 mm).

    (hope i could explain myself in and understandable way! ;-) )

    metaworx -

    Thank you a lot ! This worked for me.

    Nicolas Dudermel -

    Thanks, it worked for us as well.

    deRahier -

    great tip! Thanks so much

    Matthew Kelly -

    Really helped! This way finally worked for me. Thanks :)

    Imogen Michel -

    thank you !!

    Claire Hahn -

    Perfect Metaworx, it worked for me as well :)

    siohdk -

    Your nails are slightly long? You are lucky. Hold the phone with the screen on your right palm with the blue bits facing your body. Make sure your fingernails are holding the top of the screen. Push the back of the phone with your left hand. It worked for me.

    Askateth -

    Mit einer alten Haltekarte für SIM Cards als Hebel habe ich das Display vorsichtig abgeschoben

    Joachim -

    Unglaublich fair, dass ich mich mit diesem Kack alleine beschäftige - wenn ich so weitermache, werde ich demnächst die Trümmer meines Fairphones wahrscheinlich durch Ungeschicklichkeit so beschädigen, dass es unbrauchbar ist!

    Ralf Kiefer -

  7. FvnRMio1VwCXPprH

    • Verwijder de schermmodule uit de telefoon.

Conclusie

Om je toestel weer in elkaar te zetten, volg je deze instructies in omgekeerde volgorde.
