Farberware FSTO100 Power Supply Replacement

Geschreven door: Tony Wang
  • Reacties: 0
Farberware FSTO100 Power Supply Replacement

Moeilijkheid

Moderate

Stappen

4

Tijd vereist

20 minuten

Inleiding

Use this guide to repair the power supply with a Phillips head screwdriver, a wrench, and pliers. These tools will help secure the screw holding the wire.

  1. nE4SFRPe1VZml6Px

    • Make sure the toaster is unplugged.

    • First, to remove the plastic bracket, turn toaster oven on its side.

  2. UIRQT14ifI5BtZoa

    • Use Phillips head screwdriver and wrench to remove screw and nut securing the plastic bracket.

  3. H3fTF4GRrrBpsQE4

    • Use Phillips head screwdriver and pliers to remove screw and nut securing transformer.

  4. JU4wlWFl1cNAIqJR

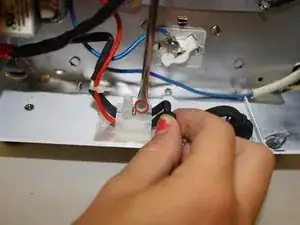

    • If the wire gets pulled out of the transformer, reinsert it.

    • Use a small flathead screwdriver to secure the screw that holds the wire in place.

Conclusie

To reassemble your device, follow these instructions in reverse order.
