Inleiding

This guide demonstrates how to replace the basket handle on a Gourmia GAF536 air fryer.

The Gourmia GAF536 comes with a basket that is used to cook the food. The handle for this basket can be damaged over time and may need replacement.

  1. 5AKKXY1roUTBuOdX
    5AKKXY1roUTBuOdX
    C4YtSlRqvXruOYug

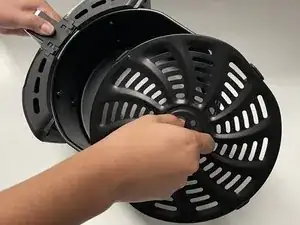

    • Make sure the device is turned off and let it cool down.

    • Remove the basket and tray from your air fryer.

  2. 1ddA6eDmHrmW2Faj
    1ddA6eDmHrmW2Faj
    m3ZyDQl5La4B4sN1
    mEfpmlUVMRLmfRH1

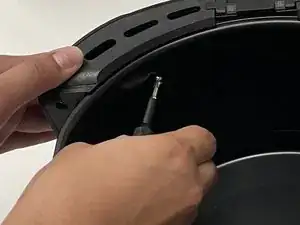

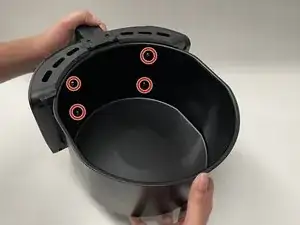

    • Locate the screws inside the basket.

    • 4x PH02 Screws: 15mm x 5mm

  3. bXwMNnZuxTiRoOab
    bXwMNnZuxTiRoOab
    QYnUVMAkGwEDofJB
    TY2q5ECAJKILrBrO

    • Once the screws are removed separate the handle from the basket.

    • Locate the single screw on the handle.

    • 1x PH02 Screw: 15mm x 5mm

  4. 6AQRpPrkQ2YhIRrI
    6AQRpPrkQ2YhIRrI
    UN2KfoRYnAPp1jYo
    PZX21eTEnqgIQJyv

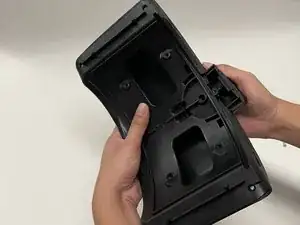

    • Remove the screw.

    • Gently pull on the handle with the force needed.

  5. JPVa1pVKEogoqdbe

    • After following these steps you will successful remove the handle.

    • Make sure you have all the equipment when going to replace the handle.

Conclusie

To reassemble your device, follow these instructions in reverse order.
