HP 14-ac151nr DC Power Jack Replacement

Geschreven door: Antonio Leonti
  • Reacties: 0
HP 14-ac151nr DC Power Jack Replacement

Moeilijkheid

Moderate

Stappen

7

Tijd vereist

15 - 20 minuten

Inleiding

If your computer won't charge and you have already ruled out a defunct charger, you can try replacing the power jack using these steps.

  1. 3bAyIsuLQWqeDTAD

    • Remove battery by pushing the two buttons inward.

  2. JAe2HV34ZjdQseBi

    • Remove the two rubber feet next to the battery.

  3. ZDeTprXhDTDMZ6Tm

    • Remove all 14 Phillips head #0 screws.

  4. LK2doFFTZUBJRCwU

    • Use a plastic opener tool to pry off the black backplate.

  5. qSTZ26RaXgZkuCbK
    qSTZ26RaXgZkuCbK
    qPkPduZQgOTlKWPe

    • Remove the black tape near the power jack.

    • Remove the screws connecting monitor to the bottom of the computer.

  6. F3pVJjdgYS4SVmoj

    • Position the metal fittings attached to the monitor out of the way.

    • The monitor is still attached by wires — be careful not to pull on it too hard.

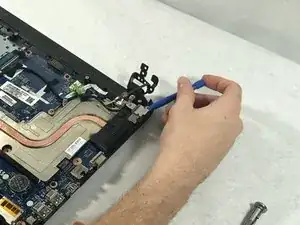

  7. CX2VFOH56HbBIHgW
    CX2VFOH56HbBIHgW
    m2bMsSZhEnMNdKUG
    cHClJwndRR5gJD6N

    • Disconnect the power jack from the motherboard.

    • Remove the power jack by lifting it up.

    • An opener tool may make this easier.

Conclusie

To reassemble your device, follow these instructions in reverse order.
