HP Envy TouchSmart 4-1215dx Hard Drive Replacement

Geschreven door: Jaewonhong
  • Reacties: 0
HP Envy TouchSmart 4-1215dx Hard Drive Replacement

Moeilijkheid

Moderate

Stappen

6

Tijd vereist

3 minuten

Inleiding

A guide on how to replace the hard drive on a HP Envy TouchSmart 4-1215dx laptop.

  1. 2PRHsYfrcIbC6rdV
    2PRHsYfrcIbC6rdV
    LCvWLEQWyJOHBSLd

    • Remove the thirteen Phillips #0 screws.

  2. 5nGJJcmMEp5sWaPk
    5nGJJcmMEp5sWaPk
    2TBqeqjlaTGuParW

    • Pull the panel up and off to remove from the laptop.

  3. LKIifYjACqenV3LB

    • Remove the three Phillips #0 screws that secure the hard drive to the laptop.

  4. ZOZysRHTQHIXKOS2

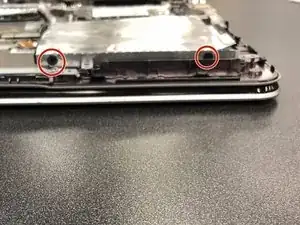

    • Lift up the hard drive and remove the two Phillips #0 screws that hold the hard drive to the case.

  5. KcItHYmbLI3feTOS

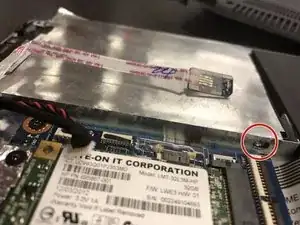

    • Remove the single Phillips #0 screw.

  6. lDjDSWIVVAAIoZEA

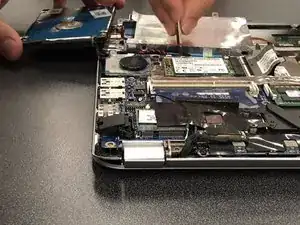

    • Lift up the hard drive to remove it from the laptop.

Conclusie

To reassemble your device, follow these instructions in reverse order.
