HyperX CloudX Stinger Core 4P5J9AA Microphone Replacement

Geschreven door: Griselda Soriano-Villa
  • Reacties: 0
HyperX CloudX Stinger Core 4P5J9AA Microphone Replacement

Moeilijkheid

Difficult

Stappen

6

Tijd vereist

20 minuten

Inleiding

The Microphone on your HyperX CloudX Stinger Core 4P5J9AA may not pick up sound. Our troubleshooting page can help solve and narrow down the issues of the microphone. If there appears to be any physical damage or issues with the hardware you will need to order a new microphone.

In any gaming environment a woking microphone is mandatory. Before starting this guide make sure you have the new microphone and the headset is unplugged.

  1. ecWrvRKq6YUDtKRS

    • Remove the ear pad on the left side of the headset.

  2. nNv1XLDXStCYrD3r

    • Remove four 8 mm screws with a Phillips #00 screwdriver.

  3. WvpUjHS2QXjPObDY

    • Remove the speaker panel from the headphones.

  4. sqNdgZJuvOhh54ut

    • Remove the two 7 mm screws from the microphone using a Phillips #00 screwdriver.

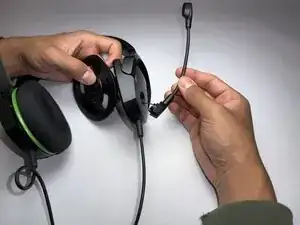

  5. pCZKWeQ3nExiCclu

    • The mic should loosen up and start to dangle once the screws are out.

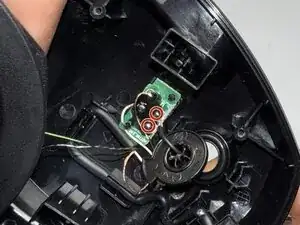

  6. Ab3uby1Ys2ALMlax

    • Desolder the two connection points and prepare to solder the new microphone in its place.

Conclusie

To reassemble your device, follow these instructions in reverse order.
