Inleiding
If the charging tool on your JBL speaker becomes loose, damaged, or stops functioning, use this guide to remove and replace the faulty battery port.
Gereedschap
-
-
Remove the hard shell using a pick or a Jimmy.
-
Carefully use a plastic pry tool to lift the outer fabric mesh cover. Start from the sides and work your way around.
-

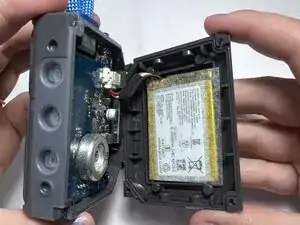

Unscrew the internal screws and gently lift off the back panel.
-
-
-

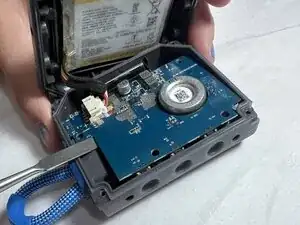

The charging port is usually mounted on a small PCB (printed circuit board
-
Take note or a picture of how everything is connected before removing anything
-
Test the charging functionality before closing everything up completely.
-
Conclusie
To reassemble your device, follow these instructions in reverse order.
