Inleiding

Use this guide to replace the faulty battery of the JBL Xtreme 4 speaker.

The JBL Xtreme 4 speaker is a roughly football sized speaker. You can tell it is time to replace your speaker's battery when it no longer holds the full 24 hour charge it is advertised to have. This defect could also be because of insufficient charging so please check that you are giving your speaker a full charge before using this guide. The battery can be replaced through a watertight panel on the base of the speaker which is secured by two screws. Something to note is that the watertight seal can be damaged through the process of battery replacement due to scratching it with your pry bar.

You will need to buy a JBL Xtreme 4 battery from an online vendor to use as a replacement. To avoid injury to yourself and damage to the speaker, make sure that the power is completely turned off when you begin the replacement.

  1. mxk5Q3nNXcaPObZt
    mxk5Q3nNXcaPObZt
    GvOwXlbJDfjDMPfY
    TPqGtwegYVkgNXRi

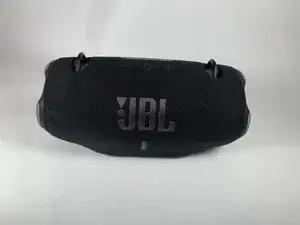

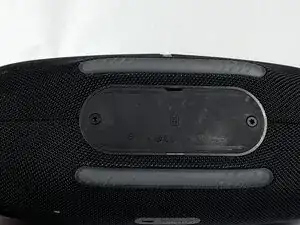

    • Flip the speaker to its base and locate the battery covering.

  2. SaiGAhpbnRfe5jLi
    SaiGAhpbnRfe5jLi
    v1CKitBKFDhtXJQI

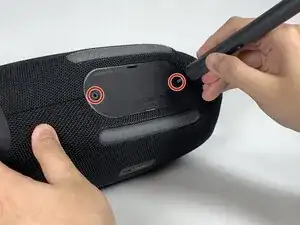

    • Use the Torx head screwdriver to remove both screws and set them aside.

  3. cCtyhmSOFjppwutW
    cCtyhmSOFjppwutW
    XMrOlsSZ114rAEI3
    jcKUYOkUfLGXSaMa

    • Insert a metal spudger into the designated notch.

    • Carefully pry off the casing and set it aside.

    • To avoid damaging the watertight seal, keep the pry bar in the notch only.

  4. ibxDUNuFMnWTVy3Z
    ibxDUNuFMnWTVy3Z
    D2PNMLm2lpZSuIUl
    AswHmAjngulLc4x2

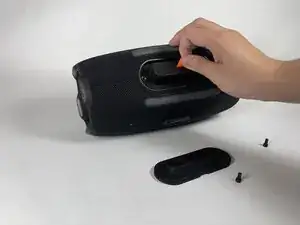

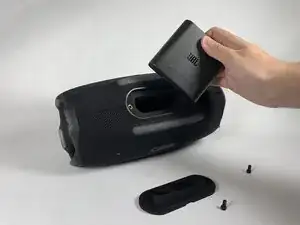

    • Remove the battery from the casing by firmly pulling the orange tab.

  5. C1HPuEAKbr6lMMgb
    C1HPuEAKbr6lMMgb
    LlmFME5d1carewRq
    BKHVX1JamweLvONP

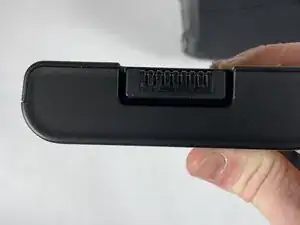

    • Insert the new battery into the casing.

    • Make sure to insert the battery in the correct orientation. The connection ports on the battery and in the casing must line up.

  6. DuZmhSTKCKAVSJcj
    DuZmhSTKCKAVSJcj
    6EkBRZgCKsJqyEFr
    jrWv3sUXomOvarEK

    • Reinstall the battery case by firmly pressing the casing cover into place.

    • Make sure the pry notch is facing upward.

  7. 3dw5dKcPRcHUDEib
    3dw5dKcPRcHUDEib
    fKjcZBZiWVBUNIOD
    hdwVcPRl1sMCfiAY

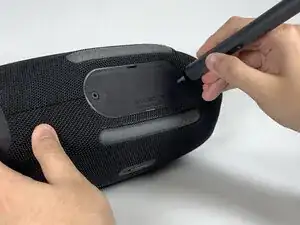

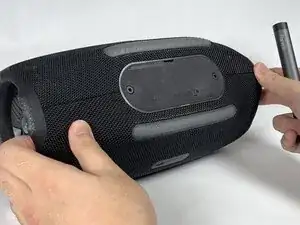

    • Reattach the casing covering by re-tightening the screws with the Torx-head screwdriver.

Conclusie

With your battery replaced, your JBL Xtreme 4 speaker will continue functioning smoothly for another battery life (several years). Thank you for acting sustainably with your electronics.
