Joy-Con Vervanging van de bevestigingsgrendel

Geschreven door: Adam O'Camb
  • Reacties: 54
Joy-Con Vervanging van de bevestigingsgrendel

Moeilijkheid

Gemiddeld

Stappen

8

Tijd vereist

10 - 30 minuten

Inleiding

Gebruik deze handleiding om de bevestigingsgrendel van een Nintendo Switch Joy-Con-controller te vervangen door een nieuwe metalen of plastic exemplaar.

Er is een aantal verschillen tussen de linker en rechter Joy-Con's, maar deze verschillen hebben geen significante invloed op de reparatieprocedure. Deze stappen zijn dus van toepassing op beide Joy-Con's.

  1. O1ZbPBpc2REmgUlB

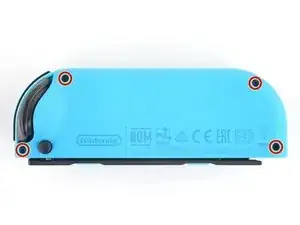

    • Gebruik een Tri-point Y00-schroevendraaier of -bitje om de vier 6.3 mm lange schroeven uit het achterste paneel van de Joy-Con te verwijderen.

  2. oQGvJu5BLwTY5OkN
    oQGvJu5BLwTY5OkN
    1YNuROiQlc21Jq2Q
    mlcGHZESLlg3ZkwP

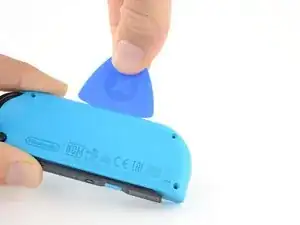

    • Steek een openingsplectrum in de naad aan de onderkant van de controller (tegenover de L- en ZL-knop).

    • Schuif je plectrum vervolgens langzaam maar zeker langs de zijkant van de Joy-Con naar boven.

    • Voorkom dat je je plectrum te diep in de Joy-Con steekt. Dit kan leiden tot schade aan de onderdelen in de controller. Aangezien het achterste paneel relatief gemakkelijk los komt, hoef je niet veel druk uit te oefenen.

  3. bIwmFjjTDWnefbWB
    bIwmFjjTDWnefbWB
    hL1IU34hedw2bBvG

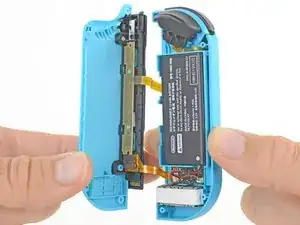

    • Zorg dat de oplaadmodule van je af wijst en open de Joy-Con vervolgens alsof je een boek zou openen.

    • Probeer het achterste paneel nog niet volledig te verwijderen, aangezien er nog twee kabels lopen die de oplaadmodule met het moederbord verbinden.

  4. 3cyYvsusYkBVFglQ

    • Gebruik een Phillips #00-schroevendraaier om de 2.5 mm lange schroef, waarmee de oplaadmodule bevestigd is, te verwijderen.

  5. 4ZnhTCwI1oARPjBq
    4ZnhTCwI1oARPjBq
    Je4P53cdQvJBmUFq

    • Trek het achterste paneel van de oplaadmodule af om deze te verwijderen.

    • Er bestaat een kans dat de ontgrendelknop bij het verwijderen uit het achterste paneel valt. Zorg dat je deze knop weer op de juiste manier terug plaatst bij het weer in elkaar zetten van je toestel: de lip op de knop moet in de uitsparing in het achterste paneel vallen.

    This took me by surprise because the charging rail is actually attached with glue as well. The glue is located in the middle of the rail.

    Steven Reynolds -

  6. rnotNK25LBKnYG61

    • Gebruik een Phillips #00-schroevendraaier om de schroef, waarmee de beugel van de bevestigingsgrendel bevestigd is, te verwijderen.

    Be sure not to over-tighten this screw on reassembly, or the button will stick. Test the button before reassembling the plastic shell.

    Andy Harris -

    Is there a missing step of disconnecting the cables to the other half of the joycon?

    Nexant -

    Damit es auch auf Deutsch dasteht: man muss wirklich aufpassen beim Zusammenbauen die Schraube nicht zu fest zu ziehen da sich der Sicherungsriegel sonst nicht mehr gut bewegen kann.

    Thomas Reichert -

  7. Zt1dMbZukLPuJFs1
    Zt1dMbZukLPuJFs1
    biwRVco5tlLvTItU
    R4JOCHrCaRhZGX53

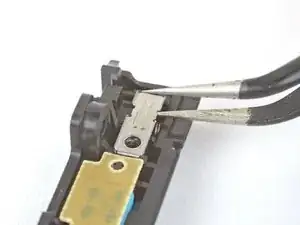

    • Schuif een arm van een pincet onder het platte gedeelte in het midden van de beugel van de bevestigingsgrendel.

    • Pak de beugel vast met je pincet en trek de beugel in een rechte beweging van de oplaadmodule weg om deze te verwijderen.

    This step takes some considerable force by the way.

    IkBenAnders -

    if you have trouble removing the silver bracket just pry with the tweezers then put the screwdriver under the bracket the pry and it comes of so much easier!!!

    Micah Hilbert -

    The spring may eject during this step if you pull with enough force to pry the buckle lock out. Keep your body to prevent the spring from flying too far. Also be mindful of which direction in the room it could fly to help you locate it sooner if it does eject out-of-sight.

    Booster Boards -

    Yes it's true, I've lost springs before when disassembling a Joycon, have a flashlight near you in case it rockets somewhere in the room.

    Alessandro De Marta -

    Note that if the buckle release is stiff or not returning to the correct position you may need to loosen this part out to give the correct resistance against the spring. This is more prevalent in non standard parts such as a metal Buckle lock. Lubrication may also help, such as WD40.

    William McGregor -

  8. XKWUElv5X1kNPJiO
    XKWUElv5X1kNPJiO
    1Mw41ygiIuaSQUtS
    UaZMyW4ST54eDohW

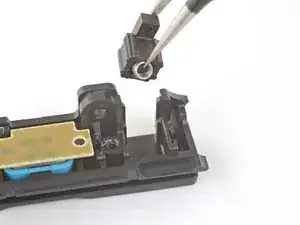

    • Til de bevestigingsgrendel lichtjes uit de inkeping in de oplaadmodule, tot de veer voldoende bloot is gelegd om deze met je pincet volledig vast te kunnen pakken.

    • Pak de bevestigingsgrendel op zo'n manier met je pincet vast dat de armen van je pincet aan de zijkanten van de grendel zitten en de veer op z'n plek houden.

    • De veer kan bij het verwijderen van de grendel weg schieten. Zorg daarom dat je een stevige grip hebt met je pincet.

    • Trek de bevestigingsgrendel uit de inkeping in de oplaadmodule.

    • Zorg dat je de veer, bij het weer in elkaar zetten van je toestel, van de oude naar die nieuwe grendel verplaatst.

    Upon reassembly of the buckle lock make sure the notch on the back is facing downwards.

    Kallon Lewallen -

    Dude, the shooting spring has to be a warning, PLEASE. I didn’t read the whole thing and it spring out once I lifted the buckle lock. I spent like 30 MINUTES finding it AND HAVING A MENTAL BREAKDOWN. I got so angry and once I found it it was AMAZING. So PLEASE AT ALL COSTS DO NOT LOSE IT PLEASE. I WAS GOING THROUGH THE STAGES OF GRIEF.

    Alexander Munoz Solis -

    ALSO be careful when screwing because I stripped the screw meaning the head of a screw has worn out from not pushing down enough and screwing it back in which ruined the screw. So BE VERY VERY CAREFUL, be sure you know everything you’re doing because if you don’t it’ll MESS you up.

    Alexander Munoz Solis -

    There used to be a photo and a procedure step showing the buckle lock orientation. Some important stuff got deleted here.

    Jim Nugent -

    Unbedingt darauf achten den richtigen Metallsicherungsriegel zu benutzen!

    Es gibt einen für den rechten Joycon und einen für den linken!

    Am besten genau mit dem alten aus Plastik vergleichen

    Peter Ullrich -

    don't tighten the metal buckle too tight. it stops the spring from working and the lock will not work

    sven coessens -

    Not sure if this only applies to the white OLED model, but for the left joycon that came with it, the buckle lock bracket was extremely difficult to remove. I had apply enough force that the bracket bent in the middle before it only popped out on the bottom side. Instead of trying to fully remove it, I just bent it out of the way, replaced the buckle lock, and bent it back in place.

    As others have said, some of the screws will very easily strip the plastic screw holes. For me, the short 2.5 mm screw for the charging rail stripped the plastic. Fortunately, the kit I purchased off amazon had some extra screws that were thicker, and were able to secure the rail.

    Otherwise, this was a great guide, and made the repair relatively painless.

    David H -

Conclusie

Volg bovenstaande instructies in omgekeerde volgorde om je toestel weer in elkaar te zetten.

Breng je e-afval naar een door R2 of e-Stewards gecertificeerd recycle-station.

Ging je reparatie niet zoals gepland? Check dan ons antwoordenforum voor hulp bij het oplossen van je probleem.
