Keurig K75 Platinum zetsysteem

Geschreven door: Kristen Temnyk
  • Reacties: 25
Keurig K75 Platinum zetsysteem

Moeilijkheid

Gemiddeld

Stappen

4

Tijd vereist

20 minuten

Inleiding

Let op: verwijder altijd eerst de stekker uit het stopcontact voordat je gaat demonteren.

Als het vacuüm niet goed werkt, komt er water in de luchtpomp waardoor deze gaat roesten en vastlopen.

  1. L3FHPZMWhraN1ACL
    L3FHPZMWhraN1ACL
    4QEoV3oKVJioJesj

    • Schakel de koffiemachine uit en haal de stekker uit het stopcontact voordat je met de reparatie begint.

    • Verplaats de koffiemachine zodat de onderkant gemakkelijk bereikbaar is.

    • Draai de vijf zilverkleurige 4mm schroeven los met een #2 Philips schroevendraaier en verwijder de schroeven.

  2. STKAdYpH4m1DATOC
    STKAdYpH4m1DATOC
    E11MuJTgodcnqIme

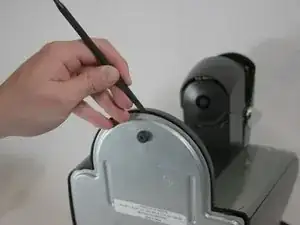

    • Wrik de metalen bodemplaat voorzichtig los van de koffiemachine.

    • Leg de bodemplaat van de koffiemachine aan de kant. Je hoeft de aarde draden niet los te maken.

  3. xEPSueub1kd2htmF

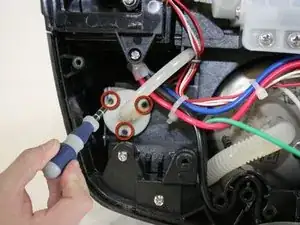

    • Vind het vacuümapparaat in de Keurig B70 Platinum koffiemachine.

    • Gebruik een #00 kruiskopschroevendraaier en draai de drie zwarte schroeven van 15 mm los die op deze afbeelding staan. (rode cirkels)

  4. EHKGQj6SBtlUugHa

    • Til met een spudger het witte gedeelte van het vacuümpomp weg van het zwarte membraan.

    • Lijn de cirkelvormige delen van het membraan opnieuw uit zodat de cirkels gelijk liggen in het zwarte membraam gedeelte.

    i pulled out rubber diaphram and ruined it too

    Douglas Friedman -

    They don’t all align flush. I push one and the other two move.

    Melissa Myers -

    Rather than remove the diaphragm, a suggestion in the video below (see time stamp 5:20) is to coat the diaphragm with vegetable oil using a cotton swab. I tried it, but it didn’t solve the issue.

    https://www.youtube.com/watch?v=2A_Rq1jx...

    Dr. Fixit -

Conclusie

Voer de stappen in omgekeerde volgorde uit om de machine weer in elkaar te zetten.

Auteur

Kristen Temnyk

Lid sinds: 25/01/13

515 Reputatie

22 commentaren

Thank you for this, it saved me from having to purchase a new Keurig. My Keurig was not pushing water out for a cup of coffee. I tried the paperclip in the needle, which didn't work. Thanks again!!!!!

gleasonme -

I cant get the little screws off of the vacuum. I broke 3 screwdrivers. Could they be glued?

Christina Garrity -

After you take the white piece of the vaccuum pump off, you will see the black rubber diaphragm just below. DO NOT REMOVE the black rubber diaphragm. It is not necessary to remove this piece, and it will NOT BE POSSIBLE to re-assemble the pump after you remove it. Just clear any obstructions and put the white piece with the tube back on.

I removed the black diaphragm before I realized what it was, and now my Keurig K75 Platinum ($) is heading to the landfill. Hopefully this will prevent somebody else from making that same mistake.

John -

Dang... didn't expect it to work... but it did!!

kimmpowers2004 -

This worked for me. When i took off the white piece 2 of the 3 little rubbery, indented pieces were recessed and one was popped out a bit. I pushed them all in and it seemingly fixed the problem. I ran it about three times so far and it is working properly so hopefully it stays working for a while.

rsivisoulivi -

Thank you so much! Tried everything, this fixed it! Gently pushed in on the rubber diaphragm round heads several times until I felt a release. It felt stuck. Freed those floating rubber heads on the diaphragm put it back together and it works like new! Thanks again!

ronpow53 -

This worked for us as well. Quick fix and we were about on the way to purchase another! Thanks for the help. JLW 12/05/2015

Jim Waldo -

I tried this on my B70 and it worked!! Honestly didn't think it would, as it seemed everything was lined up. I moved the three circular membrane pieces around, they seem to pivot on a center point. After moving each one up/down several times I buttoned it up and tried it out. Thank you

Jesus -

This actually worked? You don't need a spudger, letter opener worked for me.

Chris - 2/16/16

Chris Bryah -

I tried the paperclip to clear the needle with no luck. I disassembled the machine as illustrated, removed the 3 screws, and made sure all these lil black diaphragms were free and flush. Reassembled, and BAM, still doesn't work. Off to Bed Bath and Beyond. Very disappoint this only lasted 1 year and a half.

jsstrob -

i cant get the screws off are they glued on? %#*@!

Hollie J Linnear -

Try tightening the three screws just a bit before loosening them. Also I had to apply extra pressure to get the screwdriver to stay engaged in the head of the screw. I put the Kurig against the back of the countertop to keep it from sliding and get enough pressure on the screwdriver. Hope this helps.

Robert Dhein -

The three smaller screws were a little stuck at first. Make sure you have the correct screwdriver. Also you can try tightening just a bit before loosening them. It breaks the thread lock on the screws. Great instructions, I was able to fix my machine in under 10 minutes.

Robert Dhein -

I love the internet. My dad was throwing out his machine, claims to have tried everything possible to make it work. I took it home and my first search hit this site. Grabbed multi bit driver and followed through instructions using #2 for the 5 main screws then the #1 for 3 little black screws. Everything worked, and now my trailer gets a Keurig. Thanks for this!

Mike -

Bravo Sir, worked perfectly! Thank you!

guy junkmail -

Did not help the flow of water to the K cup. I get a full cup of coffee, but it take much longer than it use too. Wife has none the vinegar cleaning / flushing process and I did it with the Keurig solution, still slow flow with K cup inserted. Without a K cup if flow like new. I’m guessing the pump is getting weak, not the suction from the tank, but the pump (if there is one) from the internal heating unit to the K Cup. JBS 11/18/2018

Judson Stevens -

Edit…just found the iFixit for replacing / repairing the water pump. We’ll have to see how that goes.

Judson Stevens -

It worked!!!!

Jerry Ehrlich -

My machine just flashes allightz and no buttons work, not even the power button. I can plug into a power wand to turn on and off but the power button doesn't work not any other buttons. Help.

Martha -

Water is coming out the bottom what could be the problem

bernice_j_july -

It worked! Not sure if it was that vacuum diaphragm just stuck, but manipulating all three and putting it back together worked. This B70 is still running strong in 2022. Thanks!

David Lee Rogers -

I was about to throw mine out. I tried this. Used a Q-tip and pushed on the three circular things numerous times. They seemed to be stuck. I'm running a couple of quarts of water through it now after having tried the vinegar remedy. All seems to be flowing good. Before when I put my thumb over the rubber overflow to the reservoir it would come out but otherwise nothing. Thanks a bunch! Mine was a Platinum Plus B79 that had a water only button and a rinse button too. I was hating the thought of pitching it. The Keurig person said those were from 2012. We received it as a gift then. I hope it runs another 10 yrs .
