MSI GE62 Apache Pro 004 Web Camera Replacement

Geschreven door: Majid Al Hashmi
  • Reacties: 0
MSI GE62 Apache Pro 004 Web Camera Replacement

Moeilijkheid

Moderate

Stappen

7

Tijd vereist

35 - 45 minuten

Inleiding

The MSI Apache Pro 004 comes equipped with a 30 fps 720p camera. Due to age, usage, or damage, the camera may need to be replaced.

The camera is a modular component so replacing it is much easier to replace.

This guide will help you replace the webcam in your MSI Apache Pro 004 laptop.

Before you begin this repair, make sure to power off your laptop and unplug it from the charging adaptor.

  1. VrmK6rcAvhQa1YJJ

    • Start with the bottom of the laptop facing up.

  2. NycatHDJJLWqP66X
    NycatHDJJLWqP66X
    KCSglUYRMRDsWs52

    • Remove the 15 screws from the bottom of the laptop with a PH1 screwdriver.

    • Remove the bottom plate by pulling away from laptop

    • Keep track of all the screws and which slot they came from, as they slightly differ. We recommend this system: lay out on a piece of paper and pretending the paper is the device. Place the screws on the paper approximately where they would go

  3. qAj1pPlDDiRKVqMR
    qAj1pPlDDiRKVqMR
    I6vR212yFcG1Pabl
    5HjShsZMGeY6By6e

    • Remove the screw holding down the battery with a PH1 screwdriver.

    • Pull out the battery.

  4. 1c3RcY6mXUwYqeqa

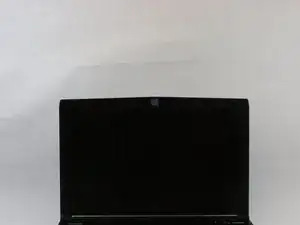

    • Flip over the laptop and open it.

  5. WW5kEdLirgcOEFUY
    WW5kEdLirgcOEFUY
    NbUEXmJouIJWMq3V
    VeINjZIup65thikA

    • Slide a metal opener tool along the outside edges of the front screen panel to start to separate it from the back screen panel.

    • You may need to apply some firm pressure to get it started.

  6. RuqnlhwAKYHxAtoy
    RuqnlhwAKYHxAtoy
    B3Fk32grIZT1mJ3K

    • Once it has started to separate, gently pull off the screen panel by working along the edge, and set it aside.

    • Do not force off. Front screen panel is thing and can break or crack very easily.

  7. iJeLTXhxPumoDOgk
    iJeLTXhxPumoDOgk
    6etmuOVKk66ZpfYg

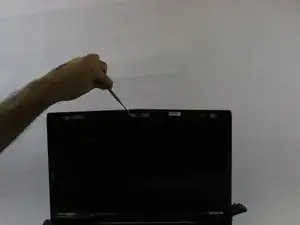

    • Locate the WebCam on the middle of the device.

    • Slide a metal opener tool to remove the Webcam

Conclusie

To reassemble your device, follow these instructions in reverse order. Take your e-waste to an R2 or e-Stewards certified recycler.
