MSI GE72 6QF Apache Pro Screen Replacement

Geschreven door: Riley Smith
  • Reacties: 0
MSI GE72 6QF Apache Pro Screen Replacement

Moeilijkheid

Easy

Stappen

3

Tijd vereist

15 minuten

Inleiding

Though the screen for this laptop can be costly, replacing the screen is quite simple. Be cautious when removing the screen bezel so that it will reattach correctly.

  1. Sl1TJdwD5HNLQnWJ
    Sl1TJdwD5HNLQnWJ
    qkLGUFaCHXmaP2bT
    4dvyPwtIWnWIXWB4

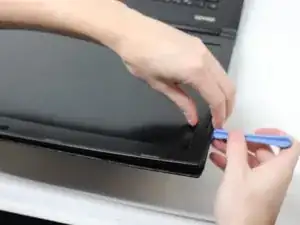

    • Be careful when removing the bezel. The clips that hold it in place will break when too much pressure is applied.

    • Use the plastic opening tool to carefully pop the screen bezel off of the laptop.

  2. UlHGFq4bmgJmAGUk
    UlHGFq4bmgJmAGUk
    Ewpc1UBBiPnYYcL5
    SupbUMGxkEScJfA2

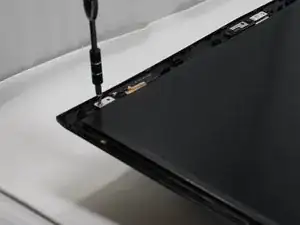

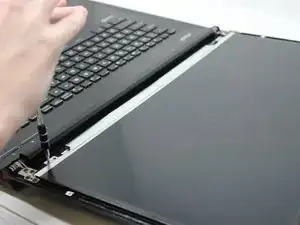

    • Using the Phillips #0 screwdriver, remove the four 3mm long screws.

  3. F4cKLHQLfHWgIQkZ
    F4cKLHQLfHWgIQkZ
    gkletQfEyp5okWpV
    kyrKgeRaVQPOuQut

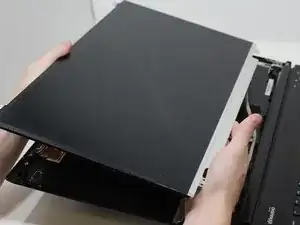

    • Flip the screen over and carefully peel off the tape that holds the connector in place.

    • When peeling off the tape, fold it back so that it can remain sticky for the new screen.

Conclusie

To reassemble your device, follow these instructions in reverse order.
