MSI GP60 2PE Leopard Fan Replacement

Geschreven door: Zoey Calcagno
  • Reacties: 0
MSI GP60 2PE Leopard Fan Replacement

Moeilijkheid

Moderate

Stappen

6

Tijd vereist

6 minuten

Inleiding

Looking to replace your fan? This guide will help you do so with only a couple steps.

  1. BHrjFcDVNAHFRYnq

    • Flip the device over so the back is facing up.

  2. MUKFAf2iAxnOfQWb
    MUKFAf2iAxnOfQWb
    TYx5wGngoTVHxlji

    • Remove the four 5mm screws from the back of the device using a Phillips #00 screwdriver.

    • There is a screw located under the battery; lift the battery up to access it.

  3. YrDhMToIpVrFaInS
    YrDhMToIpVrFaInS
    BXjZtOmQCicMTM5o

    • Once all four screws are removed, lift the back off.

  4. IRsRJIZQcM4GjEU5
    IRsRJIZQcM4GjEU5
    XpSfFSRAwiVFneBv

    • Remove the three 5 mm screws from the fan with a Phillips #00 screwdriver.

  5. HfGZJIo4Z1Y2FT6j
    HfGZJIo4Z1Y2FT6j
    GFDldYcepPJegEyc
    Spsir4xE4SAiehhb

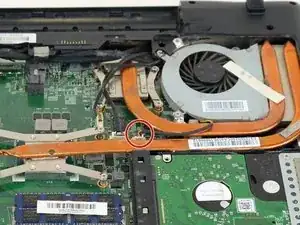

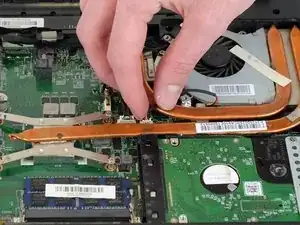

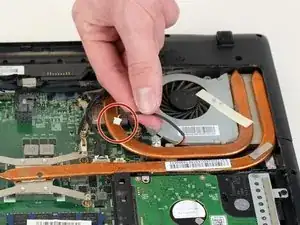

    • Pull the wire on the bottom left of the fan out of the socket.

    • Pull the wire gently; pulling too hard could damage the wire.

  6. ASIwVQaqrWxYPbI3
    ASIwVQaqrWxYPbI3
    a1VIR5tTXwTBCfsL

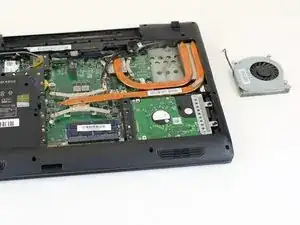

    • Remove the fan.

Conclusie

To reassemble your device, follow these instructions in reverse order.
