MSI GT72 2QE Dominator Pro RAM Replacement

Geschreven door: Nate
  • Reacties: 1
MSI GT72 2QE Dominator Pro RAM Replacement

Moeilijkheid

Easy

Stappen

3

Tijd vereist

5 minuten

Inleiding

Want to replace your RAM? This guide will show all the steps you need to remove your old one.

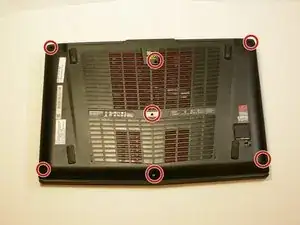

  1. gL1VuEV6P5EfA32N

    • Remove the 7 indicated 6mm Phillips #00 screws.

    • Same PH0 screwdriver can be used in all steps.

  2. wXJntrmiUgnrJMuQ

    • With the screws out, remove the bottom door.

  3. nXKwHS5KaTidL4cD
    nXKwHS5KaTidL4cD
    M6uADt5bjahyJAxA

    • Pull back clamps holding the RAM to remove it from the socket.

Conclusie

To reassemble your device, follow these instructions in reverse order.

Auteur

Nate

Lid sinds: 18/04/17

128 Reputatie

Een commentaar

This guide is incomplete. There's 4 RAM slots, you've only shown the 2 on the near side of the motherboard.

luke -
