Omaker M4 Front Case Replacement

Geschreven door: [deleted]
  • Reacties: 0
Omaker M4 Front Case Replacement

Moeilijkheid

Very easy

Stappen

4

Tijd vereist

2 minuten

Inleiding

The front case of the Omaker M4 provides a protective layer for the speaker cone. Once the front case is removed, the speaker can be accessed.

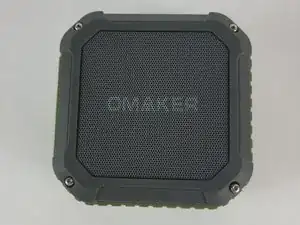

  1. LClTYaJYoAEUO1OE

    • Flip the device over so the front of the device is facing upwards. Make sure to place the speaker on a flat surface

  2. LfhPTQrgMWpghKRn
    LfhPTQrgMWpghKRn
    xUHAMjk2FOy5CyvM

    • Use a T6 Torx Screwdriver to remove the four screws from the front of the device.

  3. TWuxFwEyKmRaTjxw

    • Use a magnet to remove the screws after unscrewing them and place them aside.

  4. PYG6EMTvRPYtUWkN
    PYG6EMTvRPYtUWkN
    bFACxKmRpCl4vvCT

    • Carefully remove the front case by gently pulling it from the body of the device.

Conclusie

To reassemble your device, follow these instructions in reverse order.
