Shure SM58 XLR-kabel aansluiten

Geschreven door: nat coll

Reacties: 21

Moeilijkheid

Zeer eenvoudig

Stappen

Tijd vereist

30 seconden - 1 minuut

Inleiding

De functie van een XLR-kabel is om een gebalanceerd audiosignaal over te dragen. Deze wordt aan de onderkant van de microfoon aangesloten op de XLR-microfoonconnector.

Stap 1

Zorg ervoor dat je een goed werkende 3-pins XLR-kabel hebt.
Pak het vrouwelijke uiteinde van de kabel vast (stekker met drie gaten).

Stap 2

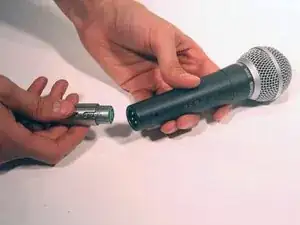

Lijn de pinnen aan het uiteinde van de microfoon aansluiting uit met de gaten van de XLR-kabel.

Stap 3

Zodra de pinnen uitgelijnd zijn, duw je de kabel in het onderste uiteinde van de microfoon. Je zou een klik moeten horen.

Conclusie

Om de kabel van de microfoon los te koppelen, volg je de instructies in omgekeerde volgorde.
