TiVo Series 2 TCD24008A Fan Replacement

Geschreven door: Talha
  • Reacties: 0
TiVo Series 2 TCD24008A Fan Replacement

Moeilijkheid

Moderate

Stappen

5

Tijd vereist

Geen schatting

Inleiding

This guide will show how to remove the fan.

  1. dfWbkgx2iLNZARcG

    • Unscrew the five 0.31 inch T-9 screws on the back cover.

  2. PUt6QkkBQL5SabyI

    • Slide the cover towards the back until it is no longer under the front cover.

  3. 3i4x5QvxKbIpACZY

    • Lift the cover up and off the device.

  4. a2jOEPUdaSgHXdDC

    • Remove power cable to fan from motherboard.

  5. 3YcpbIVEieIZ6K1i
    3YcpbIVEieIZ6K1i
    MucBR1vvAWZLsoaG

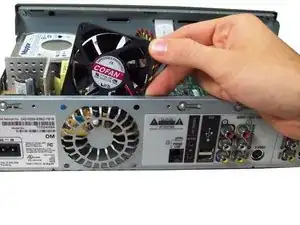

    • Remove the four 0.31 inch T-9 screws and gently pull fan out.

Conclusie

To reassemble your device, follow these instructions in reverse order.
