TiVo Series 2 TCD24008A Hard Drive Replacement

Geschreven door: Talha
  • Reacties: 0
TiVo Series 2 TCD24008A Hard Drive Replacement

Moeilijkheid

Moderate

Stappen

6

Tijd vereist

Geen schatting

Inleiding

This guide describes how to replace the hard drive.

  1. dfWbkgx2iLNZARcG

    • Unscrew the five 0.31 inch T-9 screws on the back cover.

  2. PUt6QkkBQL5SabyI

    • Slide the cover towards the back until it is no longer under the front cover.

  3. 3i4x5QvxKbIpACZY

    • Lift the cover up and off the device.

  4. FtVYoJV3ENjl1ZUm

    • Locate the hard drive.

  5. 2BRqUvVfE3NIPFrv
    2BRqUvVfE3NIPFrv
    5itnCxpifaKg3gvL

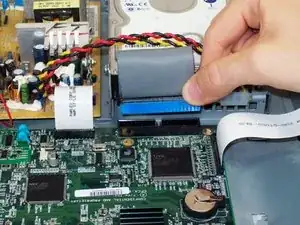

    • Remove the ribbon cable by applying firm pressure to the black tabs on the sides.

    • Remove the power cable to the right of the ribbon cable.

  6. OuXbaARM6uNsnacD
    OuXbaARM6uNsnacD
    CJqdVbIc2fB26XLe
    SbVoHPOyedKIgJkR

    • Unscrew the 0.31 inch T-9 screws from the hard drive and pull outwards to remove.

Conclusie

To reassemble your device, follow these instructions in reverse order.
