Titan Airless Sprayer IMPACT 410 Bypass Valve Assembly Replacement

Geschreven door: Alex Diaz-Kokaisl
  • Reacties: 0
Titan Airless Sprayer IMPACT 410 Bypass Valve Assembly Replacement

Moeilijkheid

Moderate

Stappen

6

Tijd vereist

20 - 30 minuten

Inleiding

Use this guide to replace the bypass valve assembly in your Titan Impact 410 Airless Sprayer.

  1. wu65Kb5OrpKcbGWN
    wu65Kb5OrpKcbGWN
    IUL6c4WgM6oJNQWK

    • Before you begin, make sure to follow the pressure relief procedure documented in the user manual before powering down the paint sprayer and disconnecting the pump.

    • Turn off and unplug the sprayer.

  2. hQGXUETRPGOIxPWf
    hQGXUETRPGOIxPWf
    ifpotKFvOpUKoZl1
    gvWxo12ZBdisiDiY

    • Use a flat punch tool and a hammer to tap the groove pin from left to right out of the valve handle.

  3. mDqq6JiXtXSHGEpQ
    mDqq6JiXtXSHGEpQ
    oAgpxdk3FHcMqcQM

    • Remove the valve handle from the cam base.

    • During reassembly, apply grease to the cam base before reattaching the valve handle.

  4. TSsIaU6QVeCMqdLa
    TSsIaU6QVeCMqdLa
    4Vf1Q1BEtOn1Vijv
    glHOi6HYixdFKUdd

    • Remove the cam base.

  5. ORTvklINcssB2Ray
    ORTvklINcssB2Ray
    nHevV6biZdlfy5jW

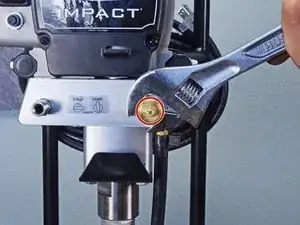

    • Use a 13/16" wrench, or an adjustable wrench, to loosen the bypass valve assembly.

    • Rotate the wrench counterclockwise.

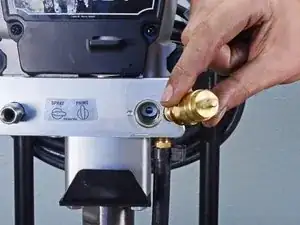

  6. ykcjhwdc5RNIBDEv
    ykcjhwdc5RNIBDEv
    R3mVxCJvAGVOWOOX
Conclusie

To reassemble your device, follow these instructions in reverse order.
