iPhone 6 Plus Vervanging van het LCD-scherm en de digitizer

Geschreven door: Walter Galan
  • Reacties: 157
iPhone 6 Plus Vervanging van het LCD-scherm en de digitizer

Moeilijkheid

Gemiddeld

Stappen

37

Tijd vereist

40 minuten - 1 uur

Inleiding

Gebruik, voor een gemakkelijkere reparatie, onze fixkit en gebruik deze kortere handleiding om het gehele scherm van je iPhone te vervangen.

Voor de doorgewinterde reparateurs helpt deze handleiding met het vervangen van "enkel" het LCD-scherm en de digitizermodule van de iPhone (a.k.a. het kale "voorste paneel"). Dit vereist het overplaatsen van een aantal onderdelen van je originele scherm naar je nieuwe scherm voordat je deze installeert—waaronder de naar voren gerichte camera, de oorstukspeaker, de LCD-beschermplaat en de thuisknopmodule.

Bij alle schermreparaties is het belangrijk dat je de originele thuisknop overzet naar je nieuwe scherm om ervoor te zorgen dat je Touch ID-functies (vingerafdrukscanner) blijft functioneren.

  1. USCeHYChW5fqBuWf

    • Ontlaad, voordat je je iPhone uit elkaar begint te halen, je batterij tot onder de 25%. Een geladen lithium-ion batterij kan in brand vliegen en/of ontploffen als deze per ongeluk wordt doorboord.

    • Schakel je iPhone uit voordat je deze uit elkaar gaat halen.

    • Verwijder de twee 3.6 mm lange Pentalobe schroeven aan beide kanten van de Lightning-connector.

    Pentalobe P2

    Enea Del Lama -

    I prefer to remove the SIM card as the very first step since it's safer to do so while the phone is fully assembled.

    estebanfallasf -

    I stripped one of the two screws - at a dead stop.

    Margaret Patterson -

    Before you even start: get the iOpener or hairdryer out. You’ll need it

    GPZ -

    If a lightning connector won’t provide a charge or needs to be wiggled carefully to provide a charge, power off the device, then try using precision tweezers to scrape the innermost wall of the lightning jack in a pinching motion to check for lint buildup. Pocket lint or other debris can accumulate inside the jack, compacting each time a cable is inserted. This can prevent a lightning cable from seating fully. Clearing the lint may restore functionality without replacing the part.

    Andrew Dolan -

    A few hints:

    * heating up the phone works great. I used a heating pad that you put in the microwave to heat sports injuries.

    * also, I made a sheet to help you keep track of the screws as you remove them. Print out the page, then place double sided tape below each color-coded listing of screws, and stick the screws to the tape as you disassemble. This helps prevent losing the screws and keeps track of what screws are what for easier reassembly. https://drive.google.com/file/d/1pLSvKvB...

    Paul Faul -

    Additional hints, for anyone who needs them:

    * stick the screws to the tape in the same positions as they are shown in the guide. This will make it easier to identify them during reassembly.

    * if the screws get mixed together, the ‘mm’ (millimetre, millimeter) measurements given in the guide can be used to identify them. Compare the lengths of the threaded shafts to each other to determine which screw is which.

    Friendly Advice -

  2. Ig5vLyOaFbSqPtl3
    Ig5vLyOaFbSqPtl3
    BgjjokgRTOEeHDtq
    4MmKE22Cy2MavVZU

    • Als het glas van je scherm gebroken is, kun je het verder breken van het glas en lichamelijke schade tijdens de reparatie voorkomen door het glas te beplakken met tape.

    • Leg overlappende stukken doorzichtige tape over het scherm van de iPhone totdat het volledig is beplakt.

    • Dit zal ervoor zorgen dat de glasscherven bij elkaar blijven en dat er een structuur wordt geboden bij het eruit duwen en tillen van het scherm.

    • Draag tijdens de reparatie een veiligheidsbril om je ogen te beschermen tegen mogelijk vrijkomende glasscherven.

    • Als het gebroken scherm het onmogelijk maakt om een zuignap vast te laten zuigen op het scherm, kun je proberen een sterk stuk tape (zoals ducttape) dubbel te vouwen in een handvat, dit op het scherm te plakken en zo het scherm omhoog te tillen.

    Tape doesn’t hold. suction cup doesn’t work. Tape folded over doesn’t work as a handle. I’ve used 3m’ s Gorilla duct tape. The glass is so shattered I cant get a point started to remove the glass. Phone has been in an otter box for years. dropped it and shattered glass while replacing case. Now what?

    Martin Speedy -

    When all else fails, you can superglue your suction cup (or tape) to the display, wait for it to cure, and pull.

    Jeff Suovanen -

    I had issues getting the suction cup to stick on my cracked screen, so I tried using scotch tape (only tape I had around), but it didn’t work. This best thing I did was to forcefully pry the screen off (I wasn’t worried about damages because it’s already cracked) with the spudger. I think its best to find something stickier (like Duct Tape) and used that to lift up the screen.

    Definitely surprised how sticky the adhesive was.

    Jeffrey Robinos -

    When using packing tape: the suction won’t hold well with the overlapping pieces, so add a square of tape where you want to put the suction cup, so it will provide an unbroken surface for the seal.

    Christa -

    It’s amazing how a heat gun or hair dryer makes life easier to soften up the adhesive. Then use a thin iSesame opening tool to get in under the screen (start @ 90 degrees/vertical either side of the home button & slowly go horizontal) the need to use suction cups. Run the opening tool along the front and down both sides to cut the adhesive before trying to lift the screen.

    Cheers Wayne

    Wayne Lyell -

    I didn’t have a hair dryer so I (gingerly) used an iron over some wet coffee filters (I mean , it is waterproof) . Then, quickly dried i off with paper towels, used gorilla tape and my fixit metal splunger . worked like a charm .

    MajorCouillon -

    What about baby cracks? skip to step 3 or not…

    Andruw Holland -

    As others have mentioned, suction cup and tape doesn’t work. I used the blade of a box cutter (watch fingers) and inserted just below and right of home button. Then moved spudger along the crack to tear adhesive/seal. Easy peasy.

    Stephen Smith -

  3. SBlkTVGogWclLvRN
    SBlkTVGogWclLvRN
    tGGCUyDTLGGtcOME
    W4nCObTTDgZnIpev

    • De volgende twee stappen demonstreren het gebruik van de anti-klem, een handige tool die je helpt bij het openen van je toestel. Als je de anti-klem niet gebruikt, sla je drie stappen over voor een alternatieve methode.

    • Raadpleeg deze handleiding voor meer gedetailleerde instructies over het gebruik van de anti-klem.

    • Trek het blauwe handvat naar achteren om de armen van de anti-klem te ontgrendelen.

    • Schuif de armen over de linker- of rechterzijde van de iPhone heen.

    • Positioneer de zuignappen in de buurt van de onderkant van de iPhone en net boven de thuisknop. De ene zuignap komt aan de voorkant en de andere zuignap komt aan de achterkant te zitten.

    • Druk beide zuignappen aan zodat ze zich stevig vastzuigen.

    • Als het oppervlak van je iPhone te glad is voor de anti-klem, waardoor deze geen goede grip heeft, kun je wat tape gebruiken om het oppervlak wat meer textuur en grip te geven.

  4. RDiNQyxvb5Aijlf6
    RDiNQyxvb5Aijlf6
    p1RYLeVRPjmbDtOf
    THpGQ5vNQfxdiEaP

    • Trek het blauwe handvat naar voren om de armen te vergrendelen.

    • Draai het handvat 360 graden met de klok mee, of totdat de zuignappen uit beginnen te rekken.

    • Zorg dat de zuignappen op één lijn zitten met elkaar. Als ze beginnen te schuiven, maak je ze weer los en zorg je dat ze weer op één lijn komen te zitten.

    • Als de anti-klem een opening heeft weten te creëren die groot genoeg is, breng je een openingsplectrum in de opening onder het scherm aan.

    • Als de anti-klem moeite heeft met het creëren van de opening draai je het handvat een kwartslag met de klok mee.

    • Draai het handvat nooit meer dan een kwartslag per keer, en wacht altijd een aantal seconden voordat je weer besluit te draaien. Laat de anti-klem het werk voor je doen.

    • Sla de volgende drie stappen over.

    Use clear nontextured tape place that over the phone screen. Refer to any guide that addresses replacing a shattered screen

    Abigail Cherry -

    I know it's tough with cracked glass. You just need enough to get in a plstic pry tool or guitar pick. Then you can pry it apart. Just be patient, I cannot stress that enough; the electronics are very, very small and fragile.

    Mike -

  5. kyqQkZwqWmMDtNVl

    • Gebruik een enkele zuignap om het voorste paneel uit de telefoon te tillen:

    • Druk een zuignap op het scherm, net boven de thuisknop.

    • Zorg dat de zuignap goed op het scherm gedrukt is om een sterke trekkracht te creëren.

    • Als je scherm gebarsten is, kun je het beplakken met een laag doorzichtige tape, waardoor de zuignap zich weer vast kan zuigen. Als alternatief kun je sterke tape gebruiken in plaats van de zuignap. Als niets daarvan lukt, kun je de zuignap aan je kapotte scherm vastlijmen met secondelijm.

    Avec la ventouse, l’ouverture est brutale, tout s’est déclipsé d’un seul coup. Faire attention.

    Paul Briffaut -

    English Please!

    tom mozeleski -

    With the sucker, the opening is brutal, everything was cleared at once. Pay attention. (Paul’s comment translated by Google)

    Steve Schlotter -

    May need to burp the sticker before it sticks. Need to let the air out. Once Idid that, no problem. Except it was still hard to get the cover to start up.

    Patricia Tucker -

    Don’t waste your time with the suction cup - it doesn’t work! insert the blade of a box cutter just below the lower screen edge below the home button and gently pry just enough to start cracking the seal.

    Stephen Smith -

  6. bPBFLb3Vf5xeFd1k

    • Trek, terwijl je de iPhone met een hand stevig vasthoudt, aan de zuignap om de voorste paneelmodule een stukje van de achterste behuizing te scheiden.

    • Neem je tijd en gebruik een stevige, constante kracht. De schermmodule zit steviger vast dan in de meeste toestellen.

    • Maak gebruik van een plasticen openingstool om de achterste behuizing naar beneden te duwen, weg van de schermmodule, terwijl je aan de zuignap blijft trekken.

    • Er is een aantal klemmen dat de schermmodule aan de achterste behuizing bevestigt. Het kan dus zijn dat je een combinatie van de zuignap en de plastic openingstool nodig hebt om de schermmodule los te krijgen.

    Be extra careful here. If you don’t take your time, your front panel may jerk back on you, causing you to overextend and break the front camera/mic flex cable; happened to me. Slowly peel back the front panel, opening it no more than 90º.

    Thomas -

    watch out for the left side of the phone the adhesive bunches up around the inner clips, i didn’t realize it and the upper left of my screen cracked pretty bad. But this guide is awesome follow every direction to the letter

    Aaron Fitzpatrick -

    Note: this comment is written for the iPhone 6 Plus, but may also apply to other models of iPhone.

    Disassembly:

    The clips in the rear case attach to small slotted shapes under the edges of the display assembly, and these attachment points alternate from one side to the other. Moving from bottom to top, gently pulling the rear case away at these points will help to separate the two halves without using too much force.

    Reassembly:

    Ensure that the plastic clips along the top edge of the front panel (shown in step 8) are fitted properly inside the rear case, then gently press the display assembly into the rear case at these points, moving from top to bottom. There may be a small click sound as the clips in the rear case engage with the slots on the display assembly, and the rear case should fit flush with the edges of the display assembly.

    Friendly Advice -

    This was challenging. For me, the suction cup could only create a tiny bit of motion and at first, no actual gap at all. You might have to pull the suction cup away from the base a few times just to loosen things up a tiny bit. Eventually, I got my fingernail in, and then after a few minutes got the plastic tool in.

    Also, use the plastic tool to gently pry along the sides of the phone once there’s light there. I was afraid of using too much leverage and breaking the screen as per the other comments, but starting at the bottom and then going around the sides slowly worked for me.

    FixingMyiPhone -

  7. YIsYQlG2dFCHb1At
    YIsYQlG2dFCHb1At
    YipiLfXkXgKNDKUN

    • Trek aan het kleine lipje op de zuignap om de vacuüm op te heffen.

    • Verwijder de zuignap van de schermmodule.

    There is an adhesive strip all along the edge between the top and bottom of the phone. Is that just adhesive or is it wire of some sort?

    Larry Ingerling -

    @lingerling The adhesive strip was introduced on the iPhone 6s and 6s Plus (one model year later than what’s shown on this page). Guides specific to each model can be found here—be sure to use the correct one for your particular phone. And yes, just adhesive, no wires. ;)

    Jeff Suovanen -

  8. Mq2BflEN1psMGQLb
    Mq2BflEN1psMGQLb
    FtVoMTGoEMekSKay
    dcWOsWLQwSlKnQOP

    • Trek de voorste paneelmodule, aan de kant van de thuisknop, weg van de achterste behuizing en maak daarbij gebruik van de bovenkant van de telefoon als scharnier.

    • Open het scherm in een hoek van ongeveer 90º en laat deze tegen iets leunen waardoor het rechtop blijft staan terwijl jij aan de telefoon werkt.

    • Gebruik indien nodig ook een elastiek om het scherm vast te maken aan het object waar het tegenaan leunt. Dit voorkomt ook dat er teveel druk op de schermkabels komt te staan.

    • Je kunt zelfs gebruik maken van een ongeopend blikje drinken om de telefoon tegenaan te laten leunen.

    Be careful If we leave the screen connected and set it to 90 degrees, the speaker / sensor flex may break. With an opening of 60 degrees it is convenient to completely disconnect the screen. The headset's flex is short, and if we put it at 90º, it can break. Guiding me from the images of iFixit, I have broken two cables.

    Español:

    Cuidado. Si dejamos la pantalla conectada y lo ponemos a 90 grados, el flex del altavoz/sensor puede romperse. Con una abertura de 60 grados es conveniente desconectar enteramente la pantalla. El flex del auricular es corto, y si lo ponemos en 90º , se puede romper. Guiándome de las imágenes de iFixit, se me han roto dos cables.

    txaukos -

    At 60º the display will block access to all the screws and the phone would be practically unserviceable, so I’m having trouble making sense of this comment. The cables on a factory original display are pretty tough and designed with enough slack that a 90º angle is no problem. Same with any decent aftermarket display.

    Jeff Suovanen -

    If you look at the enlarged image, you can see how the flex cable from the camera / speaker is in tension. This is my opinion. Sorry for my bad English

    Si usted se fija en la imagen ampliada, puede ver cómo el flex cable de la cámara/altavoz está en tensión. Esta es mi opinión.

    Perdón por mi mal inglés

    txaukos -

    your English isn’t the issue, it’s the proposed 60 degree opening space that doesn’t allow for the removal of the screws of the mounting plate where the connectors connect to the main pcb…

    if can make a recommendation here; it helps if the can is full and not refrigerated, the weight helps in keeping the phone where it should stay without adding additional tension to the ‘flex’ ribbon cable. it’s called flex for a reason people, if your breaking these the phones already been overheated too much, the cables become brittle and should also be replaced. i replaced my battery without disconnecting the screen, at 90 degrees with a rubber band around an empty beer can. pierced the orig. battery and caused sparks. albeit, i wasn’t in a hurry and it took me a good 30+ minutes, removal of the battery and stickers is by far the most challenging, especially when NOT disconnecting the screen…

    it’s not a race, take your time. move slowly but precisely with forethought and persistent force…

    circuitbender 477 -

    Werkt dit ook voor iPhone 7(plus)?

    Christina Pegtel -

    Werkt dit hetzelfde voor iPhone 7 (plus)?

    Christina Pegtel -

  9. ta6UXCeMXDwLJgff
    ta6UXCeMXDwLJgff
    upsHlSBJpnH1YuWb

    • Een aantal klemmen aan de bovenkant van de telefoon functioneert gedeeltelijk als scharnier, waardoor je de schermmodule kunt openslaan als een boek.

    • Positioneer de klemmen, tijdens het weer in elkaar zetten van je telefoon, net onder de bovenkant van de achterste behuizing. Schuif het voorste paneel vervolgens naar boven tot de bovenkant van dit paneel op een lijn is gebracht met de achterste behuizing.

    I would recommend protecting the screen once the display is free and the suction cup has been removed. This will help avoid any possibility of accidental scratching of the display crystal while the remaining steps are being performed. I used an inexpensive screen protector then removed it after reassembling and testing are complete.

    anthonyspampinato -

  10. LJRiWB63gTcRLjuo

    • Verwijder de volgende Phillips schroeven uit het plaatje over de batterijaansluiting:

    • Eén 2.3 mm lange schroef

    • Eén 3.1 mm lange schroef

    for the iPhone 6 Plus, all screws were Phillips #000

    Michael Adams -

    I had difficulty removing the 3.1mm (iPhone 6 Plus / Phillips #000); had to give it significant downward pressure to get it started.

    Allen Matheson -

    stripped the 2.3mm screw attempting to remove, had to use excessive force to successfully remove

    Matthew Gao -

    The Phillips bits provided in the kit would not engage the Phillips heads enough to loosen them. Luckily I had my own small screwdriver set that worked like a charm.

    David Davis -

    Same issue. Could not remove the screw. Dead in the water.

    Tiffany -

    Agree with above comments regarding the supplied Phillips bit. It is not the correct size.

    Use a Phillips #000.

    bobgottner -

    Phillips #000 is what’s included in the kit. As others mentioned above, firm downward pressure is key. The phone is not that delicate; just press hard and crank it.

    Jeff Suovanen -

    Is this step necessary ?\

    Asianay -

    @asianay0129 Yes, disconnecting the battery is necessary. You can sometimes get away with skipping it, at the risk of destroying something important and potentially bricking your phone. Not a wise gamble for the sake of skipping two screws.

    Jeff Suovanen -

  11. LJPr2uMXVAFoskqs

    • Verwijder het metalen plaatje over de batterijaansluiting uit de iPhone.

    Was not able to remove the battery connector bracket as one of the cable connectors was glued/stuck to the underside. Instead moved the bracket out of the way to disconnect the battery. Care should be taken not to over bend/stretch the ribbon cable.

    dwtan -

    That may be just the foam connector adhering to the bracket. If you pull up gently and twist slightly it should separate.

    Evan Noronha -

    It was the foam connector, and it did twist free with a gentle pull

    Al Taylor -

  12. ZSMGcLEnPMdHYkKr

    • Gebruik je nagel of de zijkant van een openingstool om de batterijaansluiting op subtiele wijze uit het contact op het logic board omhoog te duwen.

    • Zorg ervoor dat je enkel de batterijaansluiting en niet het contact op het logic board omhoog duwt. Als je het contact op het logic board omhoog probeert te duwen, loop je het risico de volledige aansluiting te beschadigen.

    you may consider placing a thin non-conductive item between the connector and the socket like a bit of rubber band to prevent any power flowing during this procedure

    Michael Adams -

    It was too close to other parts to pry up with either end of plastic tool. Finally used 1 tine of tweezer to lift edge. Came free easily

    Al Taylor -

    J’ai pris une loupe pour bien observer l’endroit où placer l’outil.

    Paul Briffaut -

    Magnification is key for many tasks and this is certainly one.

    Kenneth Gilbert -

    I couldn’t use the iFixit blue opening tool to pry that battery connector. I used the top of the black spudger near the hole where the 3.1mm screw was in step 9-10 to easily pry it open!

    Alyssa Sayuki -

    The blue plastic board breaker can easily cause damage here. Professionals would recommend using the human fingernail as the ideal tool for this job.

    Jessa Jones -

  13. U3B3TTmJCH2tYSMQ

    • Verwijder de volgende Phillips schroeven die het plaatje over de kabel van de schermmodule bevestigen:

    • Drie 1.2 mm lange schroeven

    • Eén 1.5 mm lange schroef

    • Eén 2.9 mm lange schroef

    • Probeer geen langere schroeven in de met rood gemarkeerde schroefgaten te draaien. Doe je dit wel, dan kan dit permanente schade aan het logic board veroorzaken.

    There's an other panel with one screw in the middle.........

    Herbert -

    Sounds like you have an iPhone 6s Plus, rather than a 6 Plus. Be sure to use the correct guide! And make sure you’ve ordered the correct part, as they’re not cross-compatible.

    Jeff Suovanen -

    I _love_ the color coding of screws. I know this is a little OCD, but it would be incredibly useful if there were an 8.5 X 11 you could print with indicated homes for where to drop items from each step of disassembly. That is, in the box for step 9, little colored circles for where to place each screw type. As long as you don't jostle the paper, it would make it a lot easier to know exactly where you are in reassembly.

    cscarlson47shop -

    I have done the exact same thing. Created a sheet where each screw goes.

    Chris Murphy -

    I used the 000 bit from the ifixit 54 piece kit.

    hhandh -

    Actually you don’t need to do steps 12 to 18 if you attach the display panel to the iPhone box as shown in step 7 and handle your iPhone with care during the replacement. I didn’t disconnect the display panel mainly because the more you work on the interior of your phone the higher is the chance you break something.

    Dany Castillo -

    Since this guide is for DISPLAY replacement, I don’t see how you can skip the steps for disconnecting and removing the DISPLAY.

    Jim Bateman -

    That's what I was thinking.

    The Wizard -

    I skipped this series of steps too. I was very careful when removing the battery and never had an issue with the screen leaning back against the box that this battery shipped in. I even broke half of the third strip of adhesive but used a plastic card to slide under the battery and it slowly lifted out without applying heat.

    mark -

    I'm having trouble with one screw not wanting to come out. Any suggestions to keep from stripping the head and getting it?

    Patric -

    which screws are which sizes cause i ordered new ones and cant figure it out

    MONsterHEIT -

    I also did not see the need to remove the display assembly for this repair. However I did place a can of corn against the vertically positioned display and then secured the display to the can with a rubber band.

    whiteshephard -

    I recommend removing the display assembly, I didn’t and somehow damaged the home button cable. At least remove the cover to ease the tension on the cables.

    Steve Schlotter -

    I played around with different screwdrivers to get certain screws out. I made sure I wasn’t applying heavy pressure so I wouldn’t strip the head. Apple is crazy for doing this to us lol.

    Anyways invest in a magnetized mat to organize your screws. It was really difficult to keep things organized and still, especially with these tiny screws…

    Jeffrey Robinos -

    what happens if i forgot to put the ribbon cable shield back on? the phone is now working but i forgot to put the shield back on and i am missing 2 screws. can i leave the shield off?

    Fred ticoman. -

    @ticoman12 It’ll work without the shield, but the connectors may pop out unexpectedly.

    Jeff Suovanen -

    Just be really careful remembering which screw is which. I drew a quick sketch of the bracket, then put the screws in the relevant places. There’s no way I would have been able to figure them out otherwise - my eyes can’t see the difference between a 1.2 and 1.5mm screw!

    Paul Johnson -

    The most fiddly part of the job.

    Much easier if you put the screwdriver head on the screw and then insert it into the opening. The slight magnetism will hold it in place. Don’t fully tighten a screw until all the screws are in place. Much like installing lug nuts on a car.

    GPZ -

    I also skipped steps 12-18 as Danny had suggested. It made this repair quite easy, so thank you and others for suggesting this. I was also very careful to allow the battery to discharge before starting the process.

    Bruce Platt -

    I question whether Steps 12-18 (separating the display from the case) is actually necessary? The battery can be removed/replaced with the display connected (but standing upright, as displayed in Step 7.

    Leaving the display attached obviates the most difficult steps (re-connecting the various control ribbons — 3/4 of ‘em!

    I followed this manual completely and the repair was successful. But if I had this to do over, I’d leave the display connected.

    Dana Smith -

    I skipped the steps 12-18 as well and thank goodness I did so I won’t have to worry about issues with any of the cables.

    my panel is different from what is pictured anyway ‘cause I have one screw in the middle like what Herbert said on the first comment.

    Maria Filamor-Robinson -

    I realized too late just how handy the magnetic mat is that they have in their shop. So I organized the screws with a piece of clear packing tape. On the smooth side, use a sharpie to draw spacious circles with “R” “O” and “Y” inside each circle to represent the color coded screws and then use the sticky side to keep the screws in place. I found that using the tweezers to take them off the screwdriver helps you stick them head first to the tape better.

    Selena Castillo -

  14. oeZLN21DdDdbvjRR

    • Verwijder het plaatje over de kabel van de voorste paneelmodule op het logic board.

  15. OjcHpgixN21XNEyj
    OjcHpgixN21XNEyj
    A3ZI2IVLXNiGbXmP

    • Zorg dat je, in de volgende vier stappen, enkel en alleen de kabelaansluitingen en niet de contacten op het logic board omhoog duwt.

    • Gebruik, terwijl je het voorste paneel ondersteunt, een nagel of de zijkant van een openingstool om de kabelaansluiting van de naar voren gerichte camera en de oorstukspeaker los te koppelen.

    Why does the screen need to come off?

    Sterling Coffey (N0SSC) -

    Because the cables are delicate, and following steps are easier if phone halves are not flopping around together, especially for amateurs.

    Matthew Goheen -

    I don't know if anyone will see this but here it goes: for the life of me I can't get the front-facing camera and earpiece speaker connector to seat. Everything else went back together fine but this one connector will not go in. Sometimes it seems like it's in even though it doesn't really pop in and it'll kinda sit there for a sec and then it pops out.

    Any insight would be greatly appreciated, thank you

    Droopy Caledonia -

    Try starting at one end instead of in the middle. It's to easy to bend a connector and this way, I can get a safe start and go from there.

    Rongwey -

  16. 16RAXK24KKO3nXDB
    16RAXK24KKO3nXDB
    J1NHr5jAvnoVLIak

    • Koppel de kabelaansluiting van de thuisknop los.

  17. RPMd1FAQrkS6RYAC
    RPMd1FAQrkS6RYAC
    NuWrHmArFoiewC5H

    • Zorg dat de batterij los is gekoppeld voordat je begint met het loskoppelen of weer aansluiten van de kabel in deze stap.

    • Gebruik een plastic openingstool om de aansluiting van de schermdatakabel los te koppelen.

    • Bij het hermonteren van je telefoon kan het zijn dat de schermdatakabel loskomt van de aansluiting. Dit kan leiden tot witte lijnen of een zwart scherm bij het inschakelen van je iPhone. In dat geval moet je de kabel weer aansluiten en je iPhone "power cyclen", wat je kunt doen door de batterijaansluiting los te koppelen en weer aan te sluiten.

    The piece of advice about power cycling the phone by disconnecting and reconnecting the battery proved crucial to the success of my repair (camera and lens replacement). At first when charging the phone after closing it, I got a dark, blank screen with an intermittent buzzing noise. After re-opening the phone and making sure all cables had been properly reconnected, I ignored the advice to power cycle the phone. Still all I got was a dark, blank screen (and intermittent buzzing if charging t). Then I opened it a third time (leaving the screen connected and attached at a 90 degree angle) and I only disconnected and reconnected the battery. Voila! When I closed the phone and powered it up, I got the screen to light up!

    Gianni -

    how did you disconnect and reconnect the battery?

    Teresa Trevino -

    If you’ve been following the guide, you already disconnected it in this step. To reconnect it, just line up the connector and press it into place.

    Jeff Suovanen -

    After replacing the battery, the phone seems dead. I thought it just needed recharging so I left it charging all night. Still dead in the morning. Now I think it might be because the display data cable is off, and I should open the phone and check it. But the battery might be on full power in that case, and they don’t advice to open the phone when battery if full. What can I do?

    Ila Awasthi -

    The advice aims at avoiding battery fire. Just be careful.

    Katherine Williams -

  18. hlwtXUrvwWbuNevM
    hlwtXUrvwWbuNevM
    QcvyhaiVdpcGaaK4

    • Koppel ten slotte de kabelaansluiting van de digitizer los.

    • Druk, bij het weer aansluiten van de digitizerkabel, niet op het midden van de aansluiting. Druk in plaats daarvan eerst op een kant van de aansluiting en druk dan op de andere kant. Druk in het midden van de aansluiting kan ervoor zorgen dat de pinnetjes buigen en er permanente schade wordt veroorzaakt.

    some images and guidance regarding reassembly would be helpful. You don't need to use the spudger to get them back on: fingers are better because there's a really subtle click you feel when you get them seated properly.

    cscarlson47shop -

    When you're reassembling, a note that this is the step where you should test for proper screen function would be really useful. First time I reassembled, I didn't seat something properly, got all the screws back together and then realized the screen wasn't functioning properly. Had to disassemble back down to step 14 and then re-reassemble.

    cscarlson47shop -

    I am having this issues right now! I have unplugged and plugged in these cables at least 20 times and each time I get white lines. I finally have it to where there are only 4 white lines and I am almost willing to live with it. Any suggestions?

    mattmay002 -

    Clean the screen connectors incase they are not making a clean connection

    Karen Jones -

    I'm having nightmares with the digitizer connector. Simply can't get it to work unless I'm applying some pressure on the connectors. Everything seems almost microscopically clean. Any suggestions friends?

    Henry A -

    could it be the replacement screen? test with your old screen and see if you have the same problem.

    Charles -

    To ++mattmay002++  Did you power cycle the phone? Check out the comments on the previous step for a how to.

    Robert Liles -

    I had issues with it too. When connecting this cable, make sure to rock finger side to side after connecting. It’s a wide connector so try to listen for 2 clicks on this one connector. That’s how I fixed mine

    Albert Einstein -

    Re-attaching this cable is the only tricky part to replacing the battery on my 6+. It had a bow on the middle that I had to flatten out before pressing the connector on with finger first on one edge and then on the other. I had white tire tracks on the screen and no touch screen until I connected it correctly. The front has to rest in just the right place on the back while attaching this thing so the cables aren’t strained the front doesn’t fall down. Small fingers would be a plus at this step.

    richard -

    Reseating these connectors on reassembly is definitely the most difficult part of this repair. It took me several attempts before the lowermost connector would seat properly and I did accidentally bend it slightly in the process. Fortunately I was able to get it straight again and get it to click in. The other three went in fine though and no lasting damage seems to have been done.

    Andy Gibbons -

    Another thing - These cables can become overlapped in the wrong way and make you think they are in a different order than they should be. Eg. it’s easy to mix up the ones from step 15 and 17. You can actually unravel the cables and re-layer them on top of each other in any order, so remember this! They look like they’re one solid mass but they’re not.

    domarius -

    I never removed the last digitizer connctor. I removed the first three connectors, left the screen propped at 90 deg tied to a box and removed the battery, there is minimal movement. In fact when I reattached the connectors, only the first and maybe second connector feels taut, so it’s necessary to only remove the first connector if you can be gentle with it. Less headache. And my guess why so many people had issues is that micro dust gets into the connectors and cause connection loss. You be surprised how little dust can cause havoc.

    darrcc -

    And forgot one thing, keep a can of air duster woth you to remove as must dust as you can see. A camera air blower will also do nice.

    darrcc -

    I haven’t removed my screen in past battery replacements, I found it easier. However, this time I followed the instructions because my old battery was very stuck, and I needed the screen gone to get the battery out…

    When I replaced the screen, at first it wouldn’t even boot/start up. (Yes, I inserted my own testing step, as someone here suggested, before final reassembly).

    The screen would just show a fuzzy image, and the board that all the cables attach to would heat up, then it would turn itself off. I tried reconnecting them carefully 3 times, and even made sure to get a little “click”, all to no avail.

    The final try, I used my fingernail to really press down on the back side of the digitizer cable. I heard more clicking, though I thought I might be tearing the cable too. With nothing left to lose, I continued across the back, and heard several more clicking/tearing sounds.

    This worked, and it booted after that. It still had white lines, but those faded away overnight.

    Morgan Giddings -

    About the digitizer connector: its flat cable is so short that the when I attempted to seat the next connector, its flat cable pressed on the digitizer cable, which can pull on the connector and dislodge it. That happened several times for me before success.

    Robert Bernard 27 Nov 19

    Robert H Bernard -

    Nous n’apercevons pas bien les nappes et l’ordre dans lesquelles elles doivent être replacer

    Patrick AZOULAY -

  19. 3gOJDeXwSv2IQKrW

    • Verwijder de voorste paneelmodule van de achterste behuizing.

    Never remove the screen without disconnecting the battery. It's possible the back light can be blown and that's a even more difficult repair. Always, ALWAYS, disconnect battery before repairing items. (Unless it's not possible.)

    Marvin Ballard -

    How do you disconnect the battery from the screen?

    Shamil Bhatti -

    The Step 11 disconnects the battery :)

    jeffxtechs -

    I think you mean Step 8 :)

    Jeff Suovanen -

    How do you disconnect the battery

    I tried it once and

    Brian -

    And what? I tried it once and here’s a million dollars?

    Oh I get it… they got him! :(

    https://www.youtube.com/watch?v=UlznqpBg...

    domarius -

    When disassembling the iphone at this point note the cables, and there placement/orientation.

    GERARD SZAREK -

    Be really careful with the step after this. Do not commence until you have read all the comments. You need to get a good hold of the plastic strips preferably before they double over on themselves. You have to avoid puncturing the battery at all costs. Slowness and caution here will save you a lot of long term pain.

    Laura Houghton -

  20. QnVWXxmMVcIDeCp4

    • Verwijder de volgende Phillips schroeven, die het bovenste plaatje bevestigen:

    • Eén 1.5 mm lange schroef

    • Twee 2.3 mm lange schroef

    Nice move, which can stop the bracket from falling down.quite detailed instruction. but you should choice an excellent front facing camera and sensor before the replacement.

    William -

    Attempted this repair and my touch screen completely stopped working. Great walkthrough, but not sure what I did wrong in the repair to cause my issue.

    surfincubus86 -

    Hi I've had exactly the same problem, what was your solution to this? would be very helpful!

    Iona -

    I had the same issue. My screen quit working and I could feel heat coming through my phone at the earpiece. I took the phone apart again and realized that the data cable for the screen had come loose. When I reattached the data cable and starting working steps 12-18 backwards to replace the shield, as noted in the very last step, I see that youhave to keep the screen at an inclinewhen replacing the shield over the cables. Otherwise, you stretch the display data cable and it can come loose. My screen works fine now and there is no heat coming from my earpiece.

    Angela Hall -

    Just completed this repair. My front facing microphone next to the ear piece had gone bad causing siri to not hear me and front facing videos had no sound. Definitely reccomend getting replacement parts from ifixit. Have had good experiences with all their parts unlike many other suppliers on the internet. Hate to admit it (don't want them to raise prices) but even though you pay a little bit more, you save frustration not getting DOA parts from cheaper sources. All of ifixit's parts are top quality and they even pack them in anti-static packaging. That says alot. Thanks ifixit!

    sherwood7 -

    Great instructions save the later steps. The ear speaker piece having to bend 180 degrees for the installation needs more clarification.

    howchewdoin -

    After this repair, my screen quit working and I could feel heat coming through my phone at the earpiece. I took the phone apart again and realized that the data cable for the screen had come loose. When I reattached the data cable and starting working steps 12-18 backwards to replace the shield, as noted in the very last step, I see that you have to keep the screen at an incline when replacing the shield over the cables. Otherwise, you stretch the display data cable and it can come loose. My screen works fine now and there is no heat coming from my earpiece.

    Angela Hall -

    The middle screw, listed as a 2.3mm was actually a 2.9mm in my iPhone 6 Plus

    Matthew Goheen -

  21. ldf5fkZKhmRwKQKk

    • Til het plaatje over het oorstuk omhoog en verwijder deze uit de schermmodule.

  22. gyZ55FMbacPjGZod

    • Gebruik het platte einde van een spudger om de naar voren gerichte camera en de schermkabels omhoog en naar de zijkant de duwen.

  23. ubYbx5YNQatLntGF

    • Gebruik een pincet om de oorstukspeaker stevig vast te pakken en uit de schermmodule te verwijderen.

    can you put Earpiece iPhone 6s plus in iPhone 6 plus

    ahmad xd -

  24. vaPmEu6CYNKjWanY
    vaPmEu6CYNKjWanY
    EcClQ3TCKLgDsmoM

    • Gebruik de punt van een spudger om de sensorkabelmodule voorzichtig omhoog te duwen uit de inkeping in de schermmodule.

    • De kabel wordt op z'n plek gehouden met een milde lijm.

    Use a hair dryer to pre-heat and soften the adhesive. Otherwise, damage to the flex cable can occur.

    Rajat Sewal -

  25. s6QFhJqxD5ST1PVl
    s6QFhJqxD5ST1PVl
    etPMZv3OG3ReeS12

    • Wrik het microfoongedeelte van de naar voren gerichte camera en sensorkabels uit de schermmodule.

    Das Mikrofonkabel ist mit einem Klebeband am Display besfestigt und muss durch anwärmen weich gemacht werden. Sonst besteht die Gefahr, dass beim Abziehen das Flachbandkabel beschädigt wird. Gruß Mike

    Mike -

    Bei meinem iPhone 6 Plus hörte das Kabel direkt vor der Gummiumrandung und nach dem Mikrofon auf. Auch das Ersatzteil ging nur bis dahin. Man musste also den Teil mit der Gummiumrandung nicht ablösen.

    gaby -

  26. OLaUGLWaIQEQyhuo

    • Verwijder de naar voren gerichte camera en sensorkabelmodule uit de schermmodule.

    • Vervangende modules kunnen met of zonder vooraf bevestigde speakergaas worden geleverd. Als het ontbreekt, bewaar dan die van je oude microfoon en hergebruik deze. Je kunt deze scheiden met het gebruik van de warmte van een föhn en wat vriendelijk geduw en getrek met een pincet.

  27. jHGm4SBRX1rQ6Qgb

    • Verwijder de twee 1.8 mm lange Phillips schroeven die het plaatje over de thuisknop aan het voorste paneel bevestigen.

    This guide is pointless, iPhone 6/6 plus home button is not replaceable, period.

    Tom Chai -

    Yes it is absolutely replaceable. You need to remember it is a encrypted security feature, so you'll need the apple ID or password to regain control again if replaced. That's the whole point to secure your data.

    Mike -

    Yes, the iPhone 6 and 6 Plus home buttons are replaceable. I do several replacements for customers and they work just fine with one exception. The fingerprint reader around the home button does not work after replacing the home button

    BrentTaylorBA -

    Hi Brent, I have a iPhone 6 plus with a shattered screen to repair and the home button is gone. You have said that you've been able to replace the home buttons successfully. I was wondering how you got past the error 53 problem when restoring it? Any suggestions or help would be greatly appreciated.

    arcadian212 -

    Error 53 was resolved by Apple with an iOS update, so fortunately this is no longer an issue! As others have stated, it's perfectly possible to replace the home button, but you will lose fingerprint sensor functionality (the original sensor is paired to your iPhone's logic board at the factory, and only Apple can pair a new one).

    Jeff Suovanen -

    Why does that make it pointless? The guide is geared towards screen replacement, with the intent of using the original home button and a new screen. It clearly states this. What about this guide is pointless? It's actually very helpful.

    abyss478 -

    Warning: The iphone 6 will brick after a restore if the home button is replaced. I agree with the other commenters that it is not a replaceable part because of this issue. If you try to restore the iPhone 6 after replacing the home button it will get stuck in recovery mode and give error 53 when a restore is attempted. I learned this the hard way! Please be careful and don't restore your phone if you do this repair.

    max -

    What did you do after your phone got stuck in recovery mode ?

    Lynn -

    I had an error 53 when trying to restore a iphone 6 plus.

    I bought a new heat shield with flex ribbon attached and installing that allowed me to get a restore complete.

    steve -

    I couldn't get my fingerprint reader to work after following this guide. I ended up taking the phone back apart and replacing the new screens' backing plate and the attached home button cable with the old, original one and now the fingerprint sensor works!

    fsharp320 -

    The little square rubber gaskets that cloak the mounting holes (little square nubs at the bottom of the picture in Step 19) for the Pentalobe Screws in Step 1 above had a tendency to fall off the screen. Further, if replacing the screen, these should also accompany the other items transferred to the new screen. This is just a small oversight I have seen from this repair guide, otherwise, smooth as silk.

    Justin -

    The connector seemed a bit raised after re-assembling, I noticed after pressing the bracket down on in preparation for screwing in. I don’t know if it’s normal for it to have a slightly raised feeling but it was noticeable. Enough to make me wonder if it’s too much pressure on it once it’s screwed together.

    domarius -

  28. EoCj5FUpQvQriZkS

    • Verwijder het plaatje over de thuisknop uit de module van het voorste paneel.

    buen día, cuando no me reconoce el touch id pero el boton si hace la función de botón ejemplo si me envía a home pero no reconoce el alcance fácil dos toques no reconoce el lector biométrico

    Yamir Maximino -

  29. SEqgBQZyi4JS3Brb
    SEqgBQZyi4JS3Brb
    1JqAcIvK5TAnnDBA

    • Gebruik de punt van een spudger om de thuisknopaansluiting los te koppelen van het contact op de thuisknopkabel.

    Will disabling and removing fingerprint passcode thru settings software wise prior to repair or starting the replacement, will this feature with a new replacement home button resolve the error 53 or the repairer need to use the original home button sensor with the correct fingerprint stored in the tiny small chip ? I have replaced a gsm iPhone 6S not plus screen making sure that not to tear off the sensor chip successfully repaired. -Joan

    JOAN E. VERGARA -

    Hi Joan! If I am understanding your question correctly, disabling the fingerprint passcode prior to repair WILL NOT result in Touch ID working after the repair. You should look at Jeff Suovanen's comment at the bottom, as he explains the two ways to keep Touch ID working. In order to keep Touch ID working, you will need to find a logic board that is paired with the home button and replace both of those components.

    Scott Havard -

    When reassembling this display connector, you must fold the new connector down into and against the plastic base in order to line up the sockets. The original connector cable is adhered to the screen, the replacement sticks straight out.

    Bret Hoffman -

  30. j6v2uGrTH1NjGCgq

    • Beweeg de punt van je spudger voorzichtig onder de aansluitkabel van de thuisknop.

    • Beweeg je spudger vervolgens met zorg onder de thuisknopkabel door om deze te scheiden van de lijm die 'm aan de voorste paneel module bevestigt.

    • Als de kabel niet gemakkelijk loskomt, kun je wat warmte gebruiken door middel van een iOpener of een föhn om zo de lijm te verzachten. Probeer het vervolgens opnieuw. Wees wel voorzichtig dat je de kabel niet beschadigt.

    Es necesario calentar para que se desprenda de una forma comoda

    Yamir Maximino -

    i found using a needle works well too, as the fine point of the needle will be able to get under the adhesive and i can gently separate it.

    Charles -

    heat thoroughly with a hair dryer. (away from your work area so you don't blast your parts all over the place!) pops right off.

    edwardlyman -

  31. YwFgfnYVx4EpYZFC
    YwFgfnYVx4EpYZFC
    kTAWftLe6cPfpgew

    • De rubberen pakking die om de thuisknop heen zit is erg dun en scheurt dus gemakkelijk.

    • Gebruik wat milde warmte (met een iOpener, warmtepistool of föhn) om de lijm, die de pakking om de thuisknop heen bevestigt, te verzachten.

    • Druk, met het topje van je vinger, voorzichtig op de thuisknop vanaf de voorkant van de voorste paneel module. Gebruik een stevige, constante druk om de pakking van de thuisknop zo langzaam van het voorste paneel te scheiden.

  32. Qj6VMpR6UM1tOX1S
    Qj6VMpR6UM1tOX1S
    MYTQSNkrBUTpQWn2

    • Gebruik de punt van een spudger om de thuisknop voorzichtig definitief van het voorste paneel te scheiden.

    The little rubber gasket seems to be a moisture seal. It isn’t glued down but over time it seals itself to the display. Pushing the spudger around underneath simply breaks the bond between the two surfaces. Be sure to do it carefully so as not to tear it.

    bichmgnt -

  33. SOWYcoQb3BlGnjej

    • Til de thuisknopmodule op en verwijder deze uit de module van het voorste paneel.

    So this fix is hardware only? Do I need to disable the touch ID feature before removal and wWhat do I do next to get the touch ID feature to function?

    Dasteufelhund -

    After removing the home button, remove the two black rubber bumpers from the ‘Pentalobe Screw’ mount brackets and transfer them to the new screen, this helps secure the home button in place and screw tension.

    James_P -

  34. wePquQcIthhX61AW
    wePquQcIthhX61AW
    Xkm4UyR6WDdgYytp

    • Verwijder de twee 1.7 mm lange Phillips schroeven (een aan de bovenkant en een aan de onderkant) die de LCD-beschermplaat aan de schermmodule bevestigt.

  35. RGStKntFr4b3XLCU
    RGStKntFr4b3XLCU
    1MUhMUMEEoOBB3d3

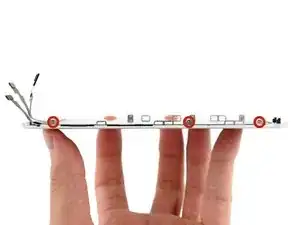

    • Verwijder drie 1.3 mm lange Phillips schroeven aan beide kanten van de LCD-beschermplaat (zes in totaal).

    The required tools list specifies a phillips #000 screwdriver, but this section indicates #00 sized screws. Can some confirm for me the actual size of the screws? If they are #00, I see the screwdrivers for this size come in 1.5 mm and 2.5 mm versions. Which should I get?

    Sidney Burton -

    If you’re using iFixit bits, either the #000 or the #00 will work fine here. Bit sizes are not standardized across manufacturers, so if you’re using tools from another vendor you’ll just have to test as you go.

    Jeff Suovanen -

  36. piXy5dyIVPIpfyJI
    piXy5dyIVPIpfyJI
    3nfh1EMORZSV41LO

    • De volgende stap vereist dat je een kant van de thuisknopkabel (in rood gemarkeerd in de tweede foto) losmaakt aangezien deze met lijm aan de achterkant van de schermmodule is bevestigd. We raden je aan een iOpener te gebruiken om de onderkant van de schermmodule, direct op de thuisknop, te verwarmen.

    you can remove this by using the smallest flat screw driver bit you have. Using the supplied picture as reference start at the lower left hand corner and push gently between the connector ribbon and the case. The glue easily separated for me.

    GERARD SZAREK -

    Do not peel off the ribbon cable!

    You should take off small rectangular metal plate on which connector is. The glue is between the metal and plastic body.

    Use a sharp needle at the lower left corner.

    peoplewide -

  37. HsGjd6wl5gOJtykS
    HsGjd6wl5gOJtykS
    iFdFJVpcJBCMuN1P
    vOUaRMV5hnFGSlOE

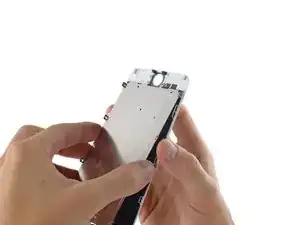

    • Til de LCD-beschermplaat voorzichtig omhoog door het einde dat het dichtst bij de oorstukspeaker ligt een aantal millimeters van de schermmodule te liften—maar verwijder deze niet.

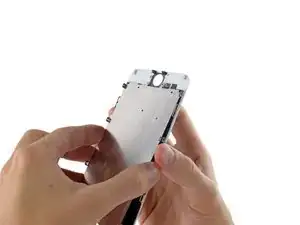

    • Til vervolgens het andere einde (het dichtst bij de thuisknop) omhoog om de thuisknopkabel van de schermmodule te scheiden.

    • Wees extreem voorzichtig bij het scheiden van de thuisknopkabel. Als je zelfs al een beetje weerstand voelt, raden we je aan om het opnieuw te verwarmen met behulp van de iOpener om het daarna nog eens te proberen.

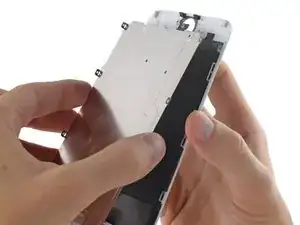

    • Verwijder de LCD-beschermplaat uit de schermmodule.

    • De schermmodule blijft over.

Conclusie

Om je toestel weer in elkaar te zetten, volg je deze instructies in omgekeerde volgorde.

Auteur

Walter Galan

703036 Reputatie

11 commentaren

I know this is a old guide but i have a question. My iphone was screen broken and i change it with a original complete iphone screen, the home button works fine but the touch id dont work. I change the home button to the one that i have in the broken screen and still the touch id dont work. What can i do to fix the touch id?

Juanjo Checo -

Help! The home button cable attached to the metal front panel ripped a little as I was gently using my fingers to lift it off the screen. Now the home button doesn't work. Did I ruin the phone or is it possible to get a front panel?

Merry Hansen -

I recently purchased this iFixit kit for my iPhone 6 Plus replacement of my screen that was cracked. I followed the instructions above, and my phone won't turn on. There is a part in to the right of the battery, just below the screen connections, that is really hot. After I noticed it wouldn't turn on, even after plugging it in, I took it back apart, and reseated the connections again. It still doesn't work. I will not purchase this kit again.

Dustin Klumb -

Bought this recently and I must say that I'm a little bit disappointed:

- the screen doesn't fit as before, you can feel a rough edge - I tried 4 times to put it correctly watching many video tutorials and I had the same result so I assume it's because it's not an original screen

- the colours are not the same anymore, looks like the saturation is on a lower setting - can't see the bright colours anymore

Overall I would rate this part 6 out of 10.

andrewbuta -

Followed this guide to the letter about 1 week ago. Happy to say its very accurate and my iphone is working 100%

Most difficult and time consuming part was re-inserting the front-facing camera and sensor cable assembly (Step 25) and also removing the home button cable (step 36)

morjo21 -

I’ve just completed this guide successfully using replacement parts I’ve ordered with ifixit in Europe. To my own surprise, everything is working: both cameras, home button, fingerprint scanner and id. Just great. I didn’t have the iSclack tool so I just used the suction cup. Also, I had to use a hair dryer instead of the iOpener tool, and it worked great even with the home button cable, just go gentle and give the heat some time to soften up the adhesive. Thanks for the great guide.

Georg Federmann -

Is this for if it don’t light up? because mine won’t come on.

Hunter Rowland -

My iPhone was entered water and I took it to engineer and he said water has spoil the panel, he said I should order for new panel ,does it work if I change the panel.

Adeniran tope David -

You did not talk about removing eye lens casing. This is the most pain when trying to put back the bracket back.

Chathura Gunawardana -

you guys rock - thank you!

benmansfield.mach1 -

I just said F it and use a Windows phone that I can mod myself

mxcombust -
