Seamarks/Light Characters

Animated illustrations of light characters'

Note: P on illustrations is seamark:light:period=*

Fixed light: seamark:light:character=F

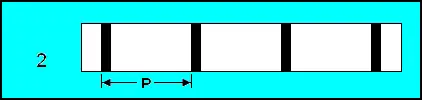

Occulting light: seamark:light:character=Oc


Isophased light: seamark:light:character=Iso

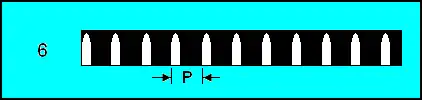

Flashing light: seamark:light:character=Fl

seamark:light:group=* not set


seamark:light:group=* set with a numerical value


Long flash light: seamark:light:character=LFl

The flashing illustration shows a Q(6)+LFl, typical South Cardinal mark, with 6 quick flashes followed by a long flash

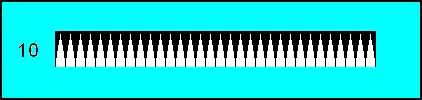

Quick-flashing light: seamark:light:character=Q

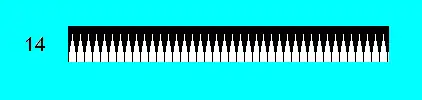

Very-quick-flashing light: seamark:light:character=VQ


Ultra-quick-flashing light: seamark:light:character=UQ

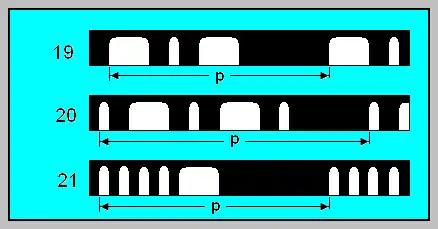

Morse light: seamark:light:character=Mo

19. +seamark:light:group=K
20. +seamark:light:group=+
21. +seamark:light:group=4

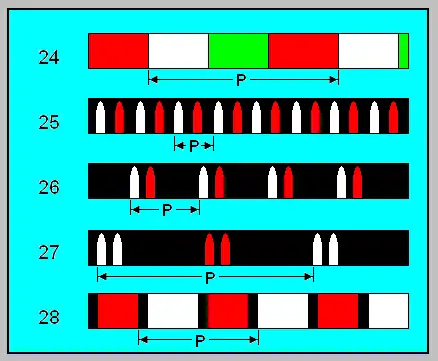

Alternating light

24. seamark:light:character=Al+seamark:light:colour=white;green;red
25. seamark:light:character=Al.Fl+seamark:light:colour=white;red
26. seamark:light:character=Al.Fl+seamark:light:group=2+seamark:light:colour=white;red
27. seamark:light:character=Al.Fl+seamark:light:group=2+2+seamark:light:colour=white;white;red;red
28. seamark:light:character=Al.Oc+seamark:light:colour=white;red
