Saeco Intelia HD8752 LCD beeldscherm vervangen.

See below my introductory comment that I appreciate this excellent guide. I'm just going to add some inline additional observations from my repair which may help you. Here, for instance, I left the machine plugged in, because once you have the screen connected it makes sense to test that the screen works before reassembling the machine. Also, I retested the old broken screen a few times while it was open just to be certain that it was not a connection or short circuit that caused the outage.

Someone put a special security tork (torque) screw into my machine. (I suppose they thought it would keep his customers from doing DYI repairs). This screw has a tiny raised metal rod in the center of the opening so that a normal torque screwdriver will not fit into the middle groove. You have to buy a $5 set of security screws on ebay. ugh.

Next and most IMPORTANTLY, after you lift the clear plastic bean bowl (name?) take off the metal warming pad (name?) so that it MOVES TOWARDS THE REAR. Why? Because there are tiny clips on the front you cannot see hooking under the lip of the front to hold it down and they will snap off the lip where they are holding the metal cover down. DON'T USE ANY FORCE AT ALL! This is the first landmine. Obviously when you reassemble it - and you can see the clips since they're out so this wont be hard - slide the metal warmer towards the front from the rear so the clips slide in under the lip that holds the metal top down. Id post pictures but this website doesn't allow comments with pictures.

Also when removing the screws from the clear plastic bean bin, use a magnet to get them up so that you don't drop them into the grinder hole.

Another landmine: On the Intelia with external milk carafe ( HD8753/87?), the silver front panel has a lip that fits under the adjacent panel. That panel which is about 2"x 3" and has a hole for the carafe MUST BE LOOSENED so that the lip from the front panel can slide in and out without snapping off the upper panel's lower lip. Also, inside are two tabs that must fit perfectly in their slots/holes or they will snap off. These tabs are tiny and will easily break So please loosen the lower panel before moving the front panel, slide the front panel on and off gently.

The front panel on the HD8758/57 clips to each side. Pull each side away gently in turn to release it.

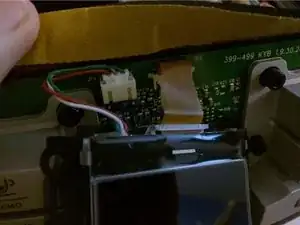

Observation: The screen's power cable is longer and stronger than the data cable (ribbon) . Take the power out last and put it in first, because you want to be super gentle with the data ribbon which slides into the holder and is clamped down by a tiny black plastic tab at the bottom of the clamp. You've seen the clamp before if you've opened a phone or anything requiring a tiny data ribbon. Of course, don't pull the power cable up by the wires. I used a fork from the kitchen both to pull up the power cable and to flip up the data ribbon black clamp tab. The fork was also handy in separating the screen from its frame, because the clear plastic tabs holding it onto the frame will be easily snapped off if you just pull them apart.

If the lcd screen is just scrambled, it might be an easy fix: blow

First, I want to thank the person who posted this EXCELLENT guide that gave me the confidence to go ahead and try repairing my $1300 coffee machine. I have some additional cautions & preparations for anyone else trying this easy repair. In general, this machine is sensitive and fits together perfectly on some fragile joints, like a Ferrari, and to be careful and not to use more force than you think is required. It is easy to snap off barriers and other lightly constructed parts of the molded plastic, an error that once made you will regret. My machine had been opened and lightly broken in a few places that I tried to repair. So above I've added comments to show you what I noticed inside. While reassembling the machine, if a part doesn't slide into place, you're not putting it in right.
