Proposal

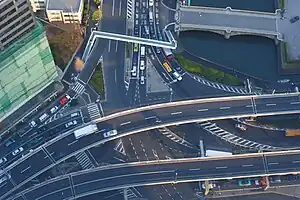

Road markings are a common part of roads all over the world. Even though road markings are not one of the "typical" things we map in OSM (since we mostly capture their meaning rather than the markings themselves), there are situations or needs where explicitely mapping them with OSM is helpful.

For some time now, there has been a wiki page with suggestions for road marking values, which were initially used by a single mapper. The suggested values do not seem to follow any particular system, but are a collection of rather overspecific values merging function and styling of markings. Nevertheless this tagging is used continuously, especially for mapping stop lines (of which over 35,000 have already been mapped using this scheme). The aim of this proposal is to reorganize the road markings scheme by introducing easier to use categories, making it more applicable to mappers and data consumers.

Note: Usually it is not necessary to map road markings as separate features, as long as their meaning is reflected in the data through appropriate tags. Typical tags that are indicated by road markings are turn:lanes=*, overtaking=*, change=* or crossing:markings=*, for example. The presence of lane markings on a road can be specified with lane_markings=* on the highway line (as well as the number of lanes themselves by counting lanes=*).

Even for rendering, using the tags mentioned above in combination with further information like placement=* or width:lanes=* is sufficient to render exactly representations of road markings. Nevertheless, there may be situations in which it makes sense for some mappers to explicitly map road markings (as the increasing use of the existing schema shows). One use case could be, for example, the cartographic representation of intersections or other complex roadway situations, which up to now can only be represented in OSM in a highly generalized form without being able to identify the detailed layout of the roadway areas.

Rationale

The existing in-use documentation of the road_marking=* key unsystematically lists a large number of different values that describe the type and appearance of markings very specifically (e.g. dashed_yield_line or solid_stop_line). The open-ended approach makes it difficult to interpret the values, in some cases even colors are used as part of the value "in the wild". The list would become longer and less interpretable over time if usage grows in countries all over the world with their different types and styles of road markings. On the other hand, there are suggested values like dash that are also hard to interpret because they could be lane, centerline, edge or crossing lines, for example.

Therefore, this proposal aims to categorize road markings into more generic classes and provide a set of additional attributes to further describe their style and meaning. One difficulty in categorizing road markings is that it can be based either on the function of a marking (e.g. stop line, lane divider, edge of carriageway, crossing edge...) or on its design (dashed line, double solid line, shark's teeth...). Both classifications have advantages and disadvantages, e.g. the design is identifiable even if the meaning is not known. Data users, on the other hand, may be more interested in the function (e.g. distinguishing between solid stop lines and solid lane dividers). This proposal tries to avoid the conflict by proposing functionally oriented, but very generic values that are easy to identify and can be specified using sub-tags.

Tagging / How to map

The road markings key is intended for mapping road markings as separate features, i.e. with their own geometry (and not, for example, on a highway line).^{[note 1]}

Depending on the category, road markings can be mapped as lines, points or areas. Add road_marking=* with one of the values listed below as well as further specifying tags if needed, e.g. for styles (line strokes, area patterns) and physical properties. In many cases, road markings have an influence on other tags, which should always be aligned (see the references in the table below).

If road markings are mapped in a location where the areas of roads and streets are also mapped with area:highway=*, the road markings are always mapped in addition, i.e. "on" the carriageway areas.

Typical Values

Illustration	Value	Geometry	Description	Interdependence with other tags
Describing linear markings
	road_marking=stop_line		A stop line e.g. in front of a traffic signal, traffic sign or (other) junctions. Can be mapped as a line following its real location, or alternatively as a point on the highway line. Add stroke=* to specify the style of the stop line (e.g. solid or sharks_teeth). If mapped on a node on the highway=* line, add direction=forward/backward to specify which direction of travel is affected by the stop line.	highway=stop highway=give_way highway=traffic_signals
	road_marking=lane_divider		Lane markings to demarcate individual lanes. Add stroke=* to specify the style of the lane marking (e.g. dashed or double_solid).	lane_markings=* lanes=* change=* overtaking=*
	road_marking=edge_line		Marking the edge/boundary of the carriageway. Add stroke=* to specify the style of the edge marking (e.g. solid).
	road_marking=crossing_edge		Edge/border markings of pedestrian or cycleway crossings. Add stroke=* to specify the style of the crossing marking (e.g. dashed).	crossing:markings=*
Describing areal markings
	road_marking=restriction		Neutral areas or restriction markings, like gore chevron or no-parking markings. Add pattern=* to specify the style of the restriction marking (e.g. chevron or stripes). Add reason=* to specify, why a restriction is marked (e.g. bus_stop, driveway or emergency).	parking:side parking:side:restriction=*
	road_marking=crossing		The (areal) marking of a crossing to map the extent of crossing markings or colored surfaces in detail. Note: In general, tags like crossing:markings=* or surface:color=* at the highway crossing line should be sufficient to describe such markings. Add pattern=* to specify the style of the crossing marking (e.g. solid). It is also possible to use the values known from crossing:markings=* (e.g. zebra), but these can be derived from any existing crossing lines and duplicate information should be avoided. Add colour=* to specify the colour of the crossing markings.	crossing:markings=*
Describing symbolic markings
	road_marking=arrow		An arrow, usually to indicate turn directions, but also for indicate driving or oneway directions or overtaking hints. In contrast to other symbolic road markings, arrows are mapped as lines (instead of points) by most mappers. It is therefore recommended to map arrows as a simple line between two points corresponding to the length and direction of a single arrow with the line starting at the "foot" (base) of the arrow. Add arrow=* to specify the form of the arrow, usually using values from turn=* (like left, through, through;right, merge_to_left, reverse, ...) or restriction=* tagging (like no_u_turn, no_right_turn).	turn:lanes=*
	road_marking=traffic_sign		An equivalent of a traffic sign applied as a road marking. Add traffic_sign=* to specify the shown traffic sign.	traffic_sign=* maxspeed=* hazard=*
	road_marking=text		Lettering on the road surface like "BUS", "SLOW" or "King St.". Add inscription=* to specify the written text.	lanes=* (like lanes:bus=*) access=* (like bus:lanes=*) hazard=*
	road_marking=symbol		A symbol or pictogram applied as a road marking. Add symbol=* to specify the shown pictogram.	e.g. cycleway=*

Additional attributes

Stroke, pattern and symbol styling

Use the tags stroke=* (for ways), pattern=* (for areas), arrow=* (for arrows) and symbol=* (for symbols) to further describe the design of road markings:

stroke=*

Use stroke=* to describe the style of linear road markings.

Some line attributes like stroke=sharks_teeth are "directed" and therefore dependent on the line direction. In this case, the stroke elements are considered to "point to the right" from the line direction (in case of shark's teeth, the tips of the teeth point to the right).

Double lane markings with different stroke styles on each side can be specified with stroke:left=* and stroke:right=* (seen in the line direction).

•
  stroke=solid
•
  stroke=dashed
•
  stroke=double_solid
•
  stroke=double_dashed
•
  stroke:left=solid +
  stroke:right=dashed
  Depending on line direction.
•
  stroke=sharks_teeth
  Deprending on line direction.
•
  stroke=zigzag

pattern=*

Use pattern=* to describe the style of areal road markings.

•
  pattern=stripes
•
  pattern=crosshatch
•
  pattern=chevron
•
  pattern=zigzag
•
  pattern=chessboard
•
  pattern=solid

arrow=*

Use arrow=* with the common values known from turn=* to specify the form of an road_marking=arrow (like left, through, through;right, merge_to_left, reverse, ...). In rarer cases, arrow markings may also show icons known from restriction=* (like no_u_turn, no_right_turn).

Examples:

•
  arrow=left
•
  arrow=left;right
•
  arrow=no_right_turn
•
  arrow=no_u_turn

symbol=*

Use symbol=* to describe the style/form of symbolic road markings (road_marking=symbol). Use a generic term such as bicycle, pedestrian, hov (see hov=*) or airport (see also destination:symbol=*). (Note: In this case, symbol=* is used homonymously with the existing use of symbol=* for the human readable equivalent of osmc:symbol=*, describing route symbols that are used as waymarkers or on guideposts. In the context of road markings, however, symbol=* fits ideally into existing schemes such as destination:symbol=*.)

Examples:

•
  symbol=bicycle
•
  symbol=wheelchair

Other additional attributes

There is a bunch of tags that can provide additional information describing the size or other physical properties of road markings:

• width=*, especially for linear road markings to distinguish narrow from wide markings,
• colour=*, e.g. whether there are white or yellow markings,
• direction=* on nodes to specify where the markings are facing to,
• length=* on nodes to specify the size of symbolic road markings (beside width=*).

Others could be added if needed, but aren't part of this proposal, like the technical form (paint, plastic/thermoplastic/tape, surface (like markings made from (paving) stones), studs) or, related to that, material=* (plastic, metal, stone...).

Examples

	Shark's teeth stop lines at a junction. road_marking=stop_line + stroke=sharks_teeth

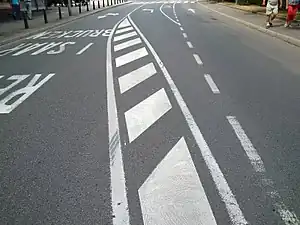

	Neutral area at an exit ramp forming a theoretical gore. road_marking=restriction + pattern=stripes
	Marking at a bus stop to raise attention and prevent cars from stopping. road_marking=restriction + pattern=zigzag + reason=bus_stop
	A pattern on a junction that can be driven over but it is not allowed to stop within it (see also box junction). road_marking=restriction + pattern=crosshatch + reason=junction
	Colored road surface on a bike lane, intended as a warning indicator on a crossing. road_marking=crossing + pattern=solid + colour=red
	A yellow centerline with dashed lines on one side and a solid line on the other. Note: Do not use road_marking=* tags on highway=* lines itself. To specify the style of road markings directly at the highway line, a further schema needs to be developed in the future. road_marking=lane_divider + stroke:left=dashed + stroke:right=solid (seen in line direction: dashed on the left, solid on the right side) + colour=yellow
	Wavy lane markings around a zebra crossing. road_marking=lane_divider / edge_line + stroke=zigzag
	Turn lanes marked with arrows... road_marking=arrow + arrow=through/arrow=right ...from left to right separated by lane markings... road_marking=lane_divider + stroke=dashed ...and two different neutral areas road_marking=restriction + pattern=chevron/pattern=stripes
	Destination markings (arrow, text, symbol) near an intersection. road_marking=arrow + arrow=through road_marking=text + inscription=TRIER road_marking=symbol + symbol=motorway

Footnotes
