Tag:waterway=boat_lift

waterway =
Description
Boat lift
Group: waterways
Used on these elements
Status: in use
waterway=boat_lift $1% $1% $1% $1% More details at taginfo
Tools for this tag
taginfo · AD · AT · BR · BY · CH · CN · CZ · DE · DK · FI · FR · GB · GR · HU · IN · IR · IT · LI · LU · JP · KP · KR · NL · PL · PT · RU · ES · AR · MX · CO · BO · CL · EC · PY · PE · UY · VE · TW · UA · US · VN overpass-turbo Sophox OSM Tag History

A Boat lift is a machine for transporting boats between water at different elevations. This can be effected by vertical movement or a rotational movement.

This tag should not be used to map cranes that are used to lift boats from the water.

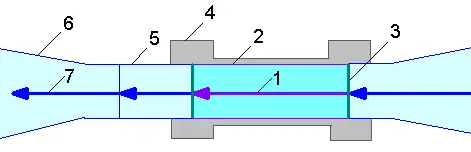

How to map

1. Boat lift

Draw a line and add the tag

• waterway=
• lock_name=* - Name

2. Lock chamber

• Draw a surface area and add natural=water + water=lock.

3. Lock_gate

• Draw a line for the Lock_gate and add waterway=lock_gate

4. Building

• building=yes
• name=*

5. Canal bridge

• natural=water + water=canal + bridge=yes

6. Riverbank

• natural=water + water=canal

7. Canal

• waterway=canal

Tags used in combination

• name=*
• maxheight=*
• maxlength=*
• maxwidth=*
• draft=*
• lock:height=*
• CEMT=*

Examples

•
  vertical boat lift
•
  Falkirk Wheel (rotational boat lift)
•
  inclined plane (not a boat lift)
•
  water slope (type of inclined plane)

See also

• man_made=crane and crane:type=* for cranes that are used to lift boats from the water.
