Kosmos Power Rules
This article or section may contain out-of-date information: Kosmos has been superseded by the more powerful Maperitive from the same author. Furthermore, the rules below are outdated not reflecting the currently used tagging scheme for power features.
If you know about the current state of affairs, please help keep everyone informed by updating this information. (Discussion)
If you know about the current state of affairs, please help keep everyone informed by updating this information. (Discussion)

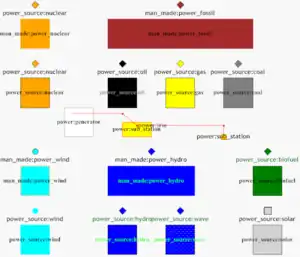

This are rules for Kosmos version 2.x and up. With these rules power network will be rendered. Version 3.1 from July 28, 2009
- power:(tower,line,generator,sub_station)
man_made=*:power_(fossil/hydro/nuclear/wind) andpower_source=*:(biofossil,oil,gas,coal,hydro,wave,solar,nuclear,wind)- Text for power lines, towers, and man_made:power_(fossil/hydro/nuclear/wind) and power_source:(biofossil,oil,gas,coal,hydro,wave,solar,nuclear,wind) rendered with name or ref or operator. (in this order)
- borders and coastlines is rendered for better orientation
- Generator without power_source will be displayed as white triangle with black border. But power_source without
power=generatorwill not be displayed.
- special for Germany: operators are rendered differently.
Borders
| Rule Name | Targets | Selector | Template | Options | Comment |
|---|---|---|---|---|---|
| Border |  |
boundary=administrative |
|||
| .level2 | admin_level=2 |
Polyline (MinZoom=1, Color=black, DashStyle=DashDot, Width=1:1;9:1.5;17:6) | |||
| .level4 | admin_level=4 |
Polyline (MinZoom=8, Color=black, DashStyle=DashDot, Width=1:1;8:1.5;17:6) | |||
| .level8 | admin_level=8 |
Polyline (MinZoom=12, Color=#A4A4A4, DashStyle=Dot, Width=1:1;9:1.5;5:5)) | |||
| .* | Polyline (MinZoom=12, Color=black, DashStyle=DashDot, Width=1:1;9:1.5;17:6) | ||||
| Coastline | |
natural=coastline |
Polyline (MinZoom=1, Color=#8BCCE5, Width=11:1;17:5, Curved=true) |
Water Features
| Rule Name | Targets | Selector | Template | Options | Comment |
|---|---|---|---|---|---|
| Water | |
natural=water |
Polygon (Color=lightblue) | ||
| Marsh | |
natural=marsh |
Polygon (Color=blue, BackgroundColor=#00000000, BorderColor=blue, BorderWidth=1:1;12:1;15:3, HatchStyle=DashedHorizontal) | ||
| River | |
waterway=river |
Polyline (MinZoom=5, Color=lightblue, Width=5:1;10:2;17:14, Curved=true) | ||
| Drain | |
waterway=drain |
Polyline (MinZoom=13, Color=lightblue, Width=13:1;17:6, Curved=true) | ||
| Stream | |
waterway=stream |
Polyline (MinZoom=13, Color=lightblue, Width=13:1;17:6, Curved=true) | ||
| Canal | |
waterway=canal |
Polyline (MinZoom=5, Color=lightblue, Width=5:1;10:1;17:10, Curved=true) | ||
| Riverbank | |
waterway=riverbank |
Polygon (Color=lightblue) | ||
| Land | |
natural=land |
Polygon (Color=white) |
Motorway
| Rule Name | Targets | Selector | Template | Options | Comment |
|---|---|---|---|---|---|
| HighwayMotorway | |
highway=motorway |
EliminateSeams | ||
| .Bridge | bridge=yes |
Polyline (MinZoom=9, Color=#809BC0, BorderColor=gray, Width=9:1;17:14, BorderWidth=30%) | |||
| .* | Polyline (MinZoom=9, Color=#809BC0, BorderColor=gray, Width=9:1;17:14) | ||||
| HighwayMotorwayLink | |
highway=motorway_link |
Polyline (MinZoom=9, Color=#809BC0, BorderColor=gray, Width=9:1;17:14) | EliminateSeams |
Railway
| Rule Name | Targets | Selector | Template | Options | Comment |
|---|---|---|---|---|---|
| RailwayStation | |
railway=station |
Symbol (Type=Diamond, MinZoom=12, Color=red, BorderColor=black, BorderWidth=15%, Size=12:6;17:20) | ||
| RailDisused | |
railway=disused |
Polyline (MinZoom=10, Color=white, DashStyle=Dot, BorderColor=#DDDDDD, Width=12:1;17:4) | EliminateSeams | |
| Railway | |
railway=* |
Polyline (MinZoom=6, Color=white, DashStyle=Dot, BorderColor=gray, Width=6:1;17:6) | EliminateSeams |
Places
| Rule Name | Targets | Selector | Template | Options | Comment |
|---|---|---|---|---|---|
| PlaceCountry | |
place=country |
Text (MinZoom=3, MaxZoom=6, Color=black, TagToUse=name, FontName=Trebuchet MS, FontStyle=bold, FontSize=3:7;7:20) | ||
| PlaceCity | |
place=city |
Text (MinZoom=8, MaxZoom=14, Color=black, TagToUse=name, FontName=Trebuchet MS, FontStyle=bold, FontSize=7:10;17:30) | ||
| PlaceTown | |
place=town |
Text (MinZoom=10.5, MaxZoom=15, Color=black, TagToUse=name, FontName=Trebuchet MS, FontStyle=bold, FontSize=10:10;17:25) | ||
| PlaceVillage | |
place=village |
Text (MinZoom=12, MaxZoom=16, Color=black, TagToUse=name, FontName=Trebuchet MS, FontStyle=bold, FontSize=12:10;17:20) | ||
| PlaceIsland | |
place=island |
Text (MinZoom=12, MaxZoom=16, Color=black, TagToUse=name, FontName=Trebuchet MS, FontStyle=bold, FontSize=12:10;17:20) | ||
| PlaceSuburb | |
place=suburb |
Text (MinZoom=13, MaxZoom=16, Color=black, TagToUse=name, FontName=Trebuchet MS, FontStyle=bold, FontSize=13:10;17:20) | ||
| PlaceHamlet | |
place=hamlet |
Text (MinZoom=14, MaxZoom=17, Color=black, TagToUse=name, FontName=Trebuchet MS, FontStyle=bold, FontSize=14:8;17:14) | ||
| PlaceLocality | |
place=locality |
Text (MinZoom=14, MaxZoom=17, Color=black, TagToUse=name, FontName=Trebuchet MS, FontStyle=bold, FontSize=14:8;17:14) | ||
| PlaceFarm | |
place=farm |
Text (MinZoom=15, MaxZoom=19, Color=black, TagToUse=name, FontName=Trebuchet MS, FontStyle=bold, FontSize=15:8;17:13) |
Power:Line
| Rule Name | Targets | Selector | Template | Options | Comment |
|---|---|---|---|---|---|
| PowerLine | |
power=line |
Text (MinZoom=11, Color=black, TagToUse=name;ref, FontName=Arial, FontStyle=regular, FontSize=11:8;16:12) | ||
| .DBEnergie | |
operator=DB_Energie |
Polyline (Color=green, BorderColor=green, Width=12:0;14:2) | ||
| .DeutscheBahnAG | |
operator=Deutsche_Bahn_AG |
Polyline (Color=green, BorderColor=green, Width=12:0;14:2) | ||
| .EnBW | |
operator=EnBW |
Polyline (Color=cyan, BorderColor=lime, Width=12:0;14:2) | ||
| .EON | |
operator=EON_Netz |
Polyline (Color=#ff00ff, BorderColor=#ff00ff, Width=12:0;14:2) | ||
| .EON_edis | |
operator=EON_edis |
Polyline (Color=#ff00ff, BorderColor=#ff00ff, Width=12:0;14:2) | ||
| .RWE | |
operator=RWE |
Polyline (Color=blue, BorderColor=blue, Width=12:0;14:2) | ||
| .StadtwerkeHannover | |
operator=Stadtwerke_Hannover_AG |
Polyline (Color=#ff00ff, BorderColor=#ff00ff, Width=12:0;14:2) | ||
| .PreussenElektra | |
operator=PreussenElektra |
Polyline (Color=#ff00ff, BorderColor=#ff00ff, Width=12:0;14:2) | ||
| .transpower | |
operator=transpower |
Polyline (Color=lime, BorderColor=#ff00ff, Width=12:0;14:2) | ||
| .VET | |
operator=Vattenfall_Europe_Transmission |
Polyline (Color=orange, BorderColor=orange, Width=12:0;14:2) | ||
| .operator | |
operator=* |
Polyline (Color=gray, BorderColor=gray, Width=12:0;14:2) | ||
| .* | |
Polyline (Color=red, BorderColor=red, Width=12:0;14:2) |
Power:Tower
| Rule Name | Targets | Selector | Template | Options | Photo |
|---|---|---|---|---|---|
| PowerTower | |
power=tower |
| ||
| .PTref | |
ref=* |
Symbol (Type=Circle, MinZoom=10, Color=lime, BorderColor=lime, BorderWidth=0%, size=10:2;13:3;16:14) Text (MinZoom=14, Color=black, TagToUse=ref;name, FontName=Arial, FontStyle=bold, FontSize=14:8;16:12) |
| |
| .PT | |
Symbol (Type=Circle, MinZoom=10, Color=red, BorderColor=red, BorderWidth=0%, size=10:2;13:3;16:14) Text (MinZoom=14, Color=black, TagToUse=ref;name, FontName=Arial, FontStyle=bold, FontSize=14:8;16:12) |
|
Power:Sub_station
| Rule Name | Targets | Selector | Template | Options | Photo |
|---|---|---|---|---|---|
| PowerStationNodea | |
power=station |
Symbol (Type=Circle, MinZoom=7, Maxzoom=11, Color=#A0FFC000, BorderColor=orange, BorderWidth=2%, size=7:10;8:20;9:40;10:80) Text (MinZoom=12, Color=black, TagToUse=name;ref;operator, FontName=Trebuchet MS, FontStyle=bold, FontSize=12:8;15:10) |
||
| PowerStationAreaa | |
power=station |
Symbol (Type=Circle, MinZoom=7, Maxzoom=11, Color=#80FFC000, BorderColor=orange, BorderWidth=2%, size=7:10;8:20;9:40;10:80) Text (MinZoom=12, Color=black, TagToUse=name;ref;operator, FontName=Times New Roman, FontStyle=bold, FontSize=12:8;15:10, TextMode=AreaCenter) |
| |
| PowerStationNodeb | |
power=station |
Symbol (Type=Square, MinZoom=11, Color=#A0FFC000, BorderColor=orange, BorderWidth=2%, size=12:8;15:10) Text (MinZoom=12, Color=black, TagToUse=name;ref;operator, FontName=Trebuchet MS, FontStyle=bold, FontSize=12:8;15:10) |
||
| PowerStationAreab | |
power=station |
Polygon (MinZoom=11, Color=#A0FFC000, BorderColor=orange, BorderWidth=1:1;16:1) Text (MinZoom=12, Color=black, TagToUse=name;ref;operator, FontName=Times New Roman, FontStyle=bold, FontSize=12:8;15:10, TextMode=AreaCenter) |
| |
| PowerSub_stationNode | |
power=sub_station |
Symbol (Type=Square, MinZoom=9, Color=yellow, BorderColor=orange, BorderWidth=5%, size=9:8;15:10) Text (MinZoom=14, Color=black, TagToUse=name;ref;operator, FontName=Trebuchet MS, FontStyle=bold, FontSize=12:8;15:10) |
||
| PowerSub_StationBuildingRaus | |
power=sub_station building=yes |
Symbol (Type=Square, MinZoom=16, Color=white, BorderColor=white, BorderWidth=0%, size=16:1) Text (MinZoom=16, Color=white, TagToUse=name;ref;operator, FontName=Times New Roman, FontStyle=bold, FontSize=16:10, TextMode=AreaCenter) |
| |
| PowerSub_StationAreaa | |
power=sub_station |
Symbol (Type=Circle, MinZoom=9, Maxzoom=12, Color=#80FFFF00, BorderColor=orange, BorderWidth=2%, size=9:20;10:40) Text (MinZoom=12, Color=red, TagToUse=name;ref;operator, FontName=Times New Roman, FontStyle=bold, FontSize=12:8;15:10, TextMode=AreaCenter) |
| |
| PowerSub_stationAreab | |
power=sub_station |
Polygon (MinZoom=12, Color=yellow, BorderColor=orange, BorderWidth=1:1;16:1) Text (MinZoom=14, Color=black, TagToUse=name;ref;operator, FontName=Times New Roman, FontStyle=bold, FontSize=12:8;15:10, TextMode=AreaCenter) |
|
Man_made:Power_(...)
| Rule Name | Targets | Selector | Template | Options | Comment |
|---|---|---|---|---|---|
| Man_madePower_fossilNode | |
man_made=power_fossil |
Symbol (Type=Diamond, MinZoom=8, Color=brown, BorderColor=black, BorderWidth=0%, size=10:5;14:16) Text (MinZoom=13, Color=black, TagToUse=name;ref;operator, TextLineOffset=-200%, FontName=Trebuchet MS, FontStyle=bold, FontSize=12:8;15:10) |
||
| Man_madePower_hydroNode | |
man_made=power_hydro |
Symbol (Type=Diamond, MinZoom=8, Color=blue, BorderColor=black, BorderWidth=0%, size=10:5;14:16) Text (MinZoom=13, Color=black, TagToUse=name;ref;operator, TextLineOffset=-200%, FontName=Trebuchet MS, FontStyle=bold, FontSize=12:8;15:10) |
||
| Man_madePower_nuclearNode | |
man_made=power_nuclear |
Symbol (Type=Diamond, MinZoom=8, Color=orange, BorderColor=black, BorderWidth=0%, size=10:5;14:16) Text (MinZoom=13, Color=black, TagToUse=name;ref;operator, TextLineOffset=-200%, FontName=Trebuchet MS, FontStyle=bold, FontSize=12:8;15:10) |
||
| Man_madePower_windNode | |
man_made=power_wind |
Symbol (Type=Circle, MinZoom=8, Color=cyan, BorderColor=black, BorderWidth=0%, size=10:5;16:15) Text (MinZoom=13, Color=black, TagToUse=name;ref;operator, TextLineOffset=-200%, FontName=Trebuchet MS, FontStyle=bold, FontSize=12:8;15:10) |
Man_made:Power_(...)
| Rule Name | Targets | Selector | Template | Options | Comment |
|---|---|---|---|---|---|
| Man_madePower_fossilArea | |
man_made=power_fossil |
Polygon (MinZoom=6, Color=brown, BorderColor=brown, BorderWidth=1:1;16:1, BackgroundColor=green) Text (MinZoom=13, Color=black, TagToUse=name;ref;operator, FontName=Times New Roman, FontStyle=bold, FontSize=12:8;15:10, TextMode=AreaCenter) |
||
| Man_madePower_hydroArea | |
man_made=power_hydro |
Polygon (MinZoom=6, Color=blue, BorderColor=blue, BorderWidth=1:1;16:1, BackgroundColor=green) Text (MinZoom=13, Color=lime, TagToUse=name;ref;operator, FontName=Times New Roman, FontStyle=bold, FontSize=12:8;15:10, TextMode=AreaCenter) |
||
| Man_madePower_nuclearArea | |
man_made=power_nuclear |
Polygon (MinZoom=6, Color=orange, BorderColor=orange, BorderWidth=1:1;16:1, BackgroundColor=green) Text (MinZoom=13, Color=black, TagToUse=name;ref;operator, FontName=Times New Roman, FontStyle=bold, FontSize=12:8;15:10, TextMode=AreaCenter) |
||
| Man_madePower_windArea | |
man_made=power_wind |
Polygon (MinZoom=6, Color=cyan, Options=TopLevel, BorderColor=orange, BorderWidth=1:1;16:1, BackgroundColor=green) Text (MinZoom=13, Color=black, TagToUse=name;ref;operator, FontName=Times New Roman, FontStyle=bold, FontSize=12:8;15:10, TextMode=AreaCenter) |
Power_source
| Rule Name | Targets | Selector | Template | Options | Comment |
|---|---|---|---|---|---|
| power_sourceNode | |
power=generator |
|||
| .power_sourceBiofuelNode | power_source=biofuel |
Symbol (Type=Diamond, MinZoom=8, Color=green, BorderColor=black, BorderWidth=0%, size=10:5;14:16) Text (MinZoom=13, Color=green, TagToUse=name;ref;operator, TextLineOffset=-200%, FontName=Trebuchet MS, FontStyle=bold, FontSize=12:8;15:10) |
|||
| .power_sourceCoalNode | power_source=coal |
Symbol (Type=Diamond, MinZoom=8, Color=gray, BorderColor=black, BorderWidth=0%, size=10:5;14:16) Text (MinZoom=13, Color=black, TagToUse=name;ref;operator, TextLineOffset=-200%, FontName=Trebuchet MS, FontStyle=bold, FontSize=12:8;15:10) |
|||
| .power_sourceGasNode | power_source=gas |
Symbol (Type=Diamond, MinZoom=8, Color=yellow, BorderColor=black, BorderWidth=0%, size=10:5;14:16) Text (MinZoom=13, Color=black, TagToUse=name;ref;operator, TextLineOffset=-200%, FontName=Trebuchet MS, FontStyle=bold, FontSize=12:8;15:10) |
|||
| .power_sourceHydroNode | power_source=hydro |
Symbol (Type=Diamond, MinZoom=8, Color=blue, BorderColor=black, BorderWidth=0%, size=10:5;14:16) Text (MinZoom=13, Color=green, TagToUse=name;ref;operator, TextLineOffset=-200%, FontName=Trebuchet MS, FontStyle=bold, FontSize=12:8;15:10) |
|||
| .power_sourceNuclearNode | power_source=nuclear |
Symbol (Type=Diamond, MinZoom=8, Color=orange, BorderColor=black, BorderWidth=0%, size=10:5;14:16) Text (MinZoom=13, Color=black, TagToUse=name;ref;operator, TextLineOffset=-200%, FontName=Trebuchet MS, FontStyle=bold, FontSize=12:8;15:10) |
|||
| .power_sourceOilNode | power_source=oil |
Symbol (Type=Diamond, MinZoom=8, Color=black, BorderColor=black, BorderWidth=0%, size=10:5;14:16) Text (MinZoom=13, Color=black, TagToUse=name;ref;operator, TextLineOffset=-200%, FontName=Trebuchet MS, FontStyle=bold, FontSize=12:8;15:10) |
|||
| .power_sourceSolarNode | power_source=solar |
Symbol (Type=Square, MinZoom=8, Color=lightgray, BorderColor=black, BorderWidth=0%, size=10:5;14:16) Text (MinZoom=13, Color=black, TagToUse=name;ref;operator, TextLineOffset=-200%, FontName=Trebuchet MS, FontStyle=bold, FontSize=12:8;15:10) |
|||
| .power_sourceWaveNode | power_source=wave |
Symbol (Type=Diamond, MinZoom=8, Color=blue, BorderColor=black, BorderWidth=0%, size=10:5;14:16) Text (MinZoom=13, Color=green, TagToUse=name;ref;operator, TextLineOffset=-200%, FontName=Trebuchet MS, FontStyle=bold, FontSize=12:8;15:10) |
|||
| .power_sourceWindNode | power_source=wind |
Symbol (Type=Circle, MinZoom=8, Color=cyan, BorderColor=cyan, BorderWidth=0%, size=10:2;16:15) Text (MinZoom=13, Color=black, TagToUse=name;ref;operator, TextLineOffset=-200%, FontName=Trebuchet MS, FontStyle=bold, FontSize=12:8;15:10) |
|||
| .* | power=generator |
Symbol (Type=Triangle, MinZoom=7, Color=white, BorderColor=black, BorderWidth=0%, size=10:5;14:16) Text (MinZoom=12, Color=black, TagToUse=name;ref;operator, TextLineOffset=-200%, FontName=Trebuchet MS, FontStyle=bold, FontSize=12:8;15:10) |
Power_source
| Rule Name | Targets | Selector | Template | Options | Comment |
|---|---|---|---|---|---|
| power_sourceArea | |
power=generator |
|||
| .power_sourceBiofuelArea | power_source=biofuel |
Polygon (MinZoom=9, Color=green, BorderColor=black, BorderWidth=1:1;16:1) Text (MinZoom=12, Color=black, TagToUse=name;ref;operator, FontName=Times New Roman, FontStyle=bold, FontSize=12:8;15:10, TextMode=AreaCenter) |
|||
| .power_sourceCoalArea | power_source=coal |
Polygon (MinZoom=9, Color=gray, BorderColor=black, BorderWidth=1:1;16:1, BackgroundColor=green) Text (MinZoom=12, Color=black, TagToUse=name;ref;operator, FontName=Times New Roman, FontStyle=bold, FontSize=12:8;15:10, TextMode=AreaCenter) |
|||
| .power_sourceGasArea | power_source=gas |
Polygon (MinZoom=9, Color=yellow, BorderColor=black, BorderWidth=1:1;16:1, BackgroundColor=green) Text (MinZoom=12, Color=black, TagToUse=name;ref;operator, FontName=Times New Roman, FontStyle=bold, FontSize=12:8;15:10, TextMode=AreaCenter) |
|||
| .power_sourceHydroArea | power_source=hydro |
Polygon (MinZoom=9, Color=blue, BorderColor=black, BorderWidth=1:1;16:1) Text (MinZoom=12, Color=lime, TagToUse=name;ref;operator, FontName=Times New Roman, FontStyle=bold, FontSize=12:8;15:10, TextMode=AreaCenter) |
|||
| .power_sourceNuclearArea | power_source=nuclear |
Polygon (MinZoom=9, Color=orange, BorderColor=black, BorderWidth=1:1;16:1) Text (MinZoom=12, Color=black, TagToUse=name;ref;operator, FontName=Times New Roman, FontStyle=bold, FontSize=12:8;15:10, TextMode=AreaCenter) |
|||
| .power_sourceOilArea | power_source=oil |
Polygon (MinZoom=9, Color=black, BorderColor=black, BorderWidth=1:1;16:1, BackgroundColor=green) Text (MinZoom=12, Color=gray, TagToUse=name;ref;operator, FontName=Times New Roman, FontStyle=bold, FontSize=12:8;15:10, TextMode=AreaCenter) |
|||
| .power_sourceSolarArea | power_source=solar |
Polygon (MinZoom=9, Color=lightgray, BorderColor=black, BorderWidth=1:1;16:1) Text (MinZoom=12, Color=black, TagToUse=name;ref;operator, FontName=Times New Roman, FontStyle=bold, FontSize=12:8;15:10, TextMode=AreaCenter) |
|||
| .power_sourceWaveArea | power_source=wave |
Polygon (MinZoom=9, Color=#5555ff, BorderColor=black, BackgroundColor=blue, BorderWidth=1:1;16:1, HatchStyle=DashedHorizontal) Text (MinZoom=12, Color=lime, TagToUse=name;ref;operator, FontName=Times New Roman, FontStyle=bold, FontSize=12:8;15:10, TextMode=AreaCenter) |
|||
| .power_sourceWindArea | power_source=wind |
Polygon (MinZoom=9, Color=cyan, Options=TopLevel, BorderColor=cyan, BorderWidth=1:1;16:1, BackgroundColor=cyan) Text (MinZoom=12, Color=black, TagToUse=name;ref;operator, FontName=Times New Roman, FontStyle=bold, FontSize=12:8;15:10, TextMode=AreaCenter) |
|||
| .* | power=generator |
Polygon (MinZoom=7, Color=gray, BorderColor=gray, size=10:5;14:16, BorderWidth=1:1;16:1) Text (MinZoom=12, Color=black, TagToUse=name;ref;operator, FontName=Times New Roman, FontStyle=bold, FontSize=12:8;15:10, TextMode=AreaCenter) |
Routes
| Rule Name | Targets | Selector | Template | Options | Comment |
|---|---|---|---|---|---|
| RelationOperatorDB_Energie |  |
type=route route=power operator=DB_Energie |
Polyline (MinZoom=7, Color=#4050FF50, Width=7:1;17:10, Curved=true) | ||
| RelationOperatorVET | |
type=route route=power operator=Vattenfall_Europe_Transmission |
Polyline (MinZoom=7, Color=#40FFFF00, Width=7:1;17:10, Curved=true) | ||
| RelationOperatorEON_Netz | |
type=route route=power operator=EON_Netz |
Polyline (MinZoom=7, Color=#40FF00FF, Width=7:1;17:10, Curved=true) | ||
| RelationOperatorRWE | |
type=route route=power operator=RWE |
Polyline (MinZoom=7, Color=#400202FE, Width=7:1;17:10, Curved=true) | ||
| RouteFoot | |
type=route route=foot |
Polyline (MinZoom=7, Color=#500000aa, Width=7:1;17:10, Curved=true) |
